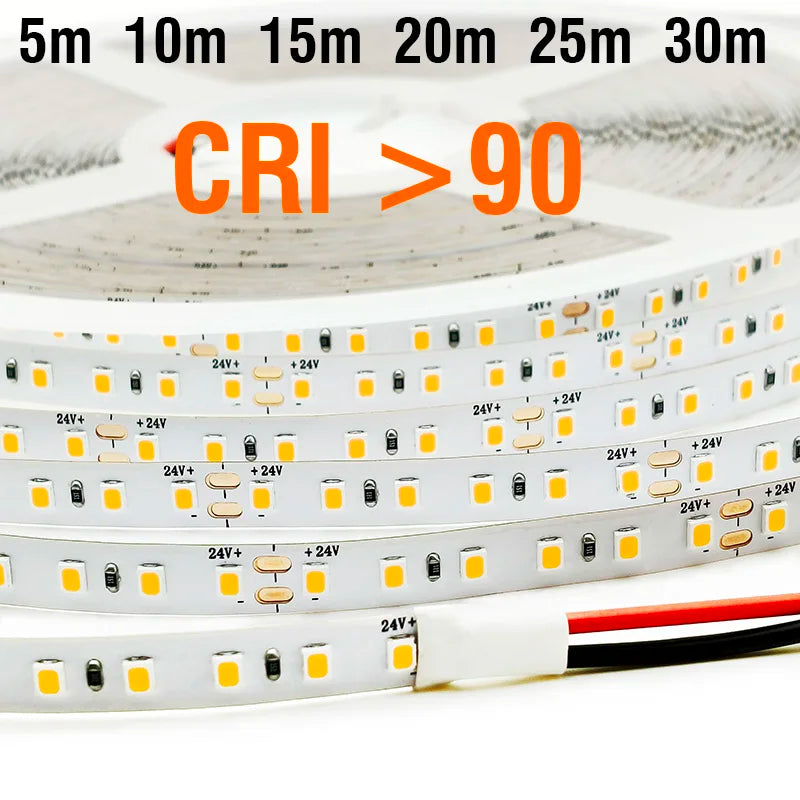

Product parameters and introduction:

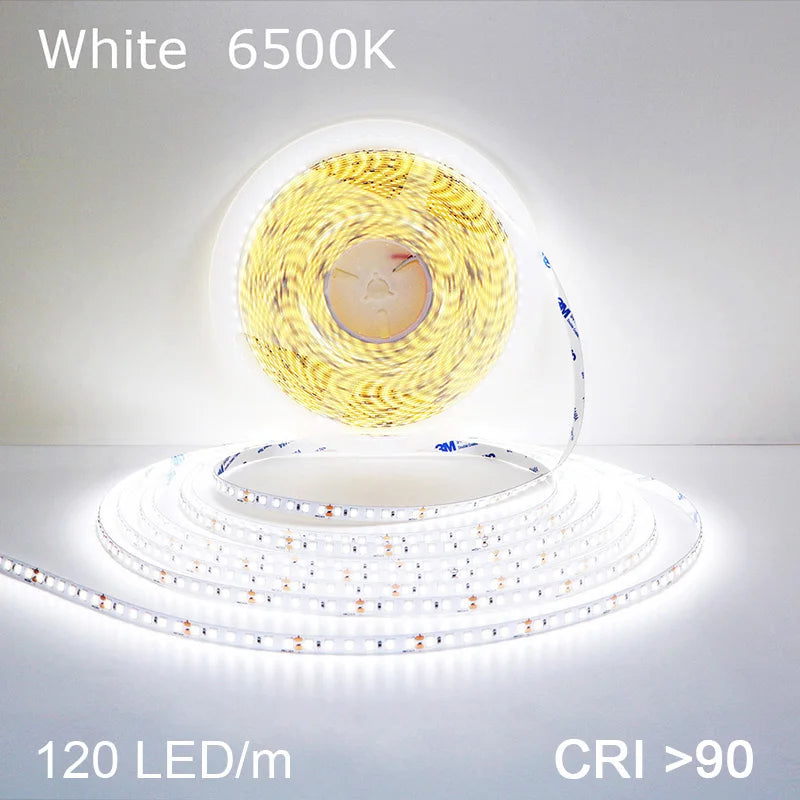

1. LED Quantity: 120LEDs/m,

2. SMD type: SMD2835

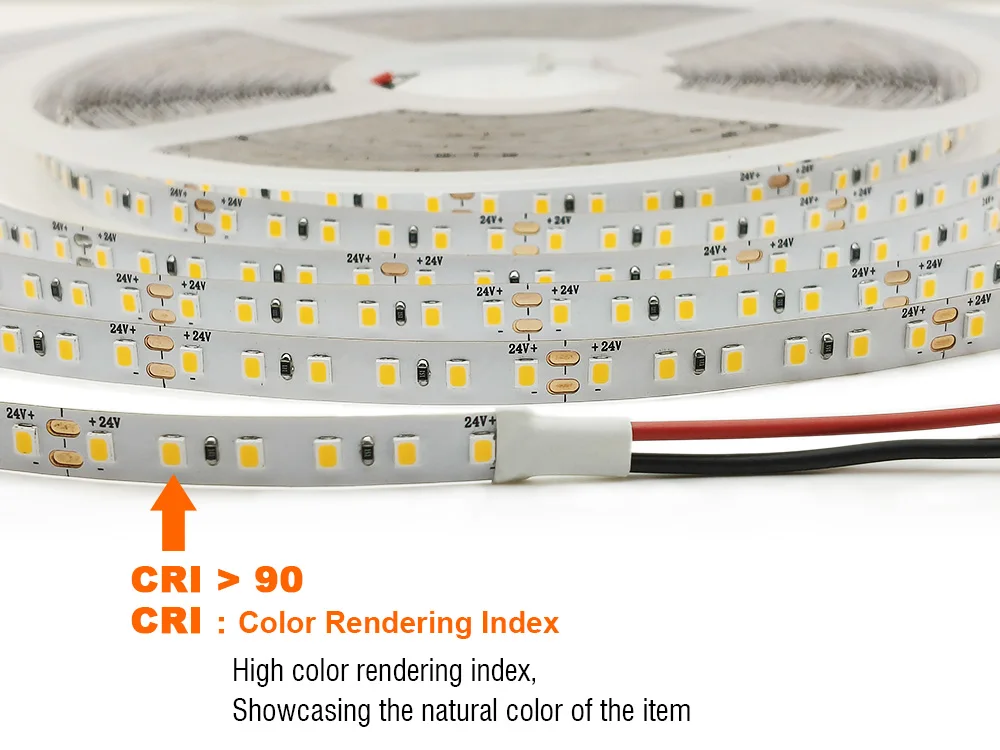

3. Color Rendering Index (CRI): >90

4. LED Strip Size:

Width of LED light strip: 8mm

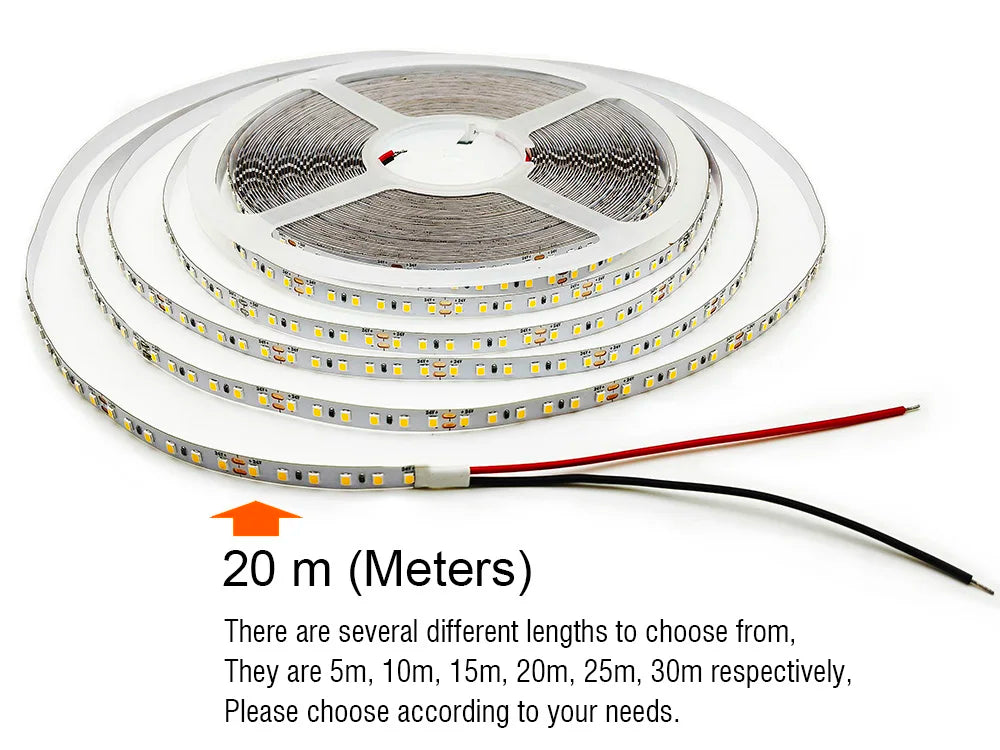

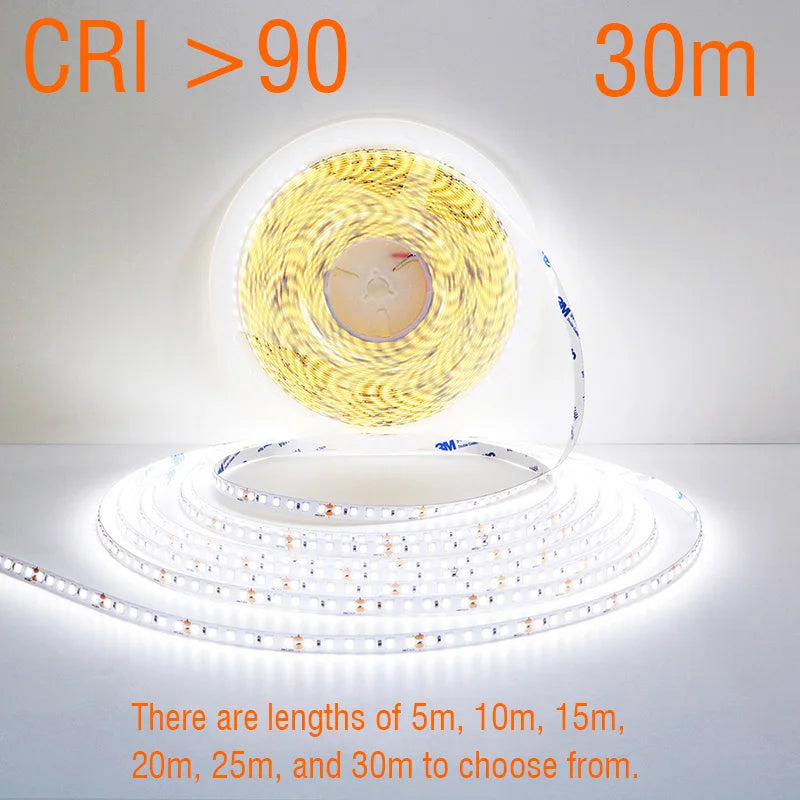

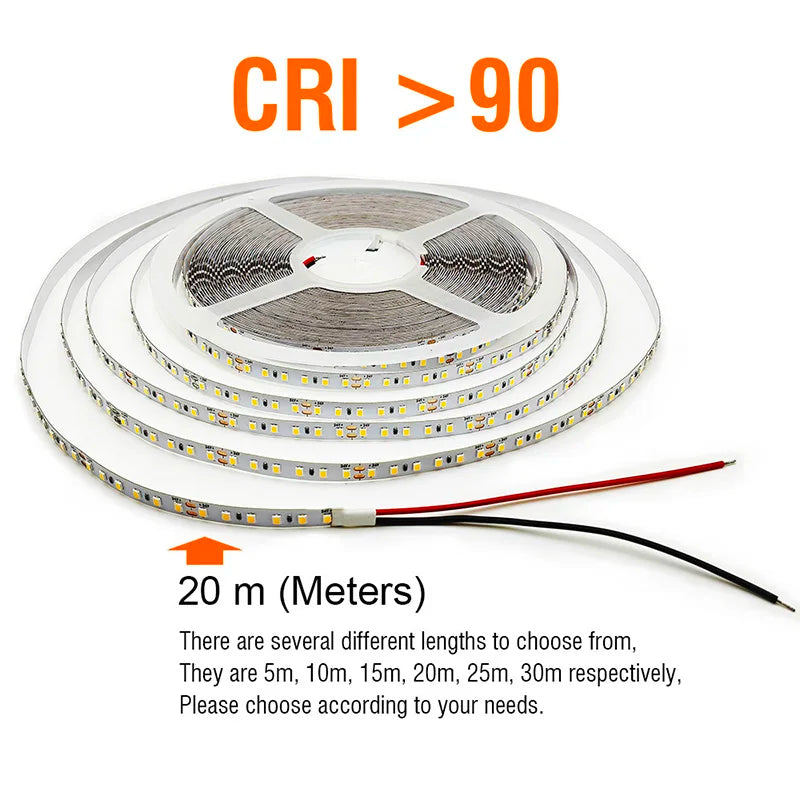

Length of LED light strip: 5 meters / 10 meters / 15 meters / 20 meters / 25 meters / 30 meters (There are 6 lengths to choose from，Please choose according to the length of the light strip you need)

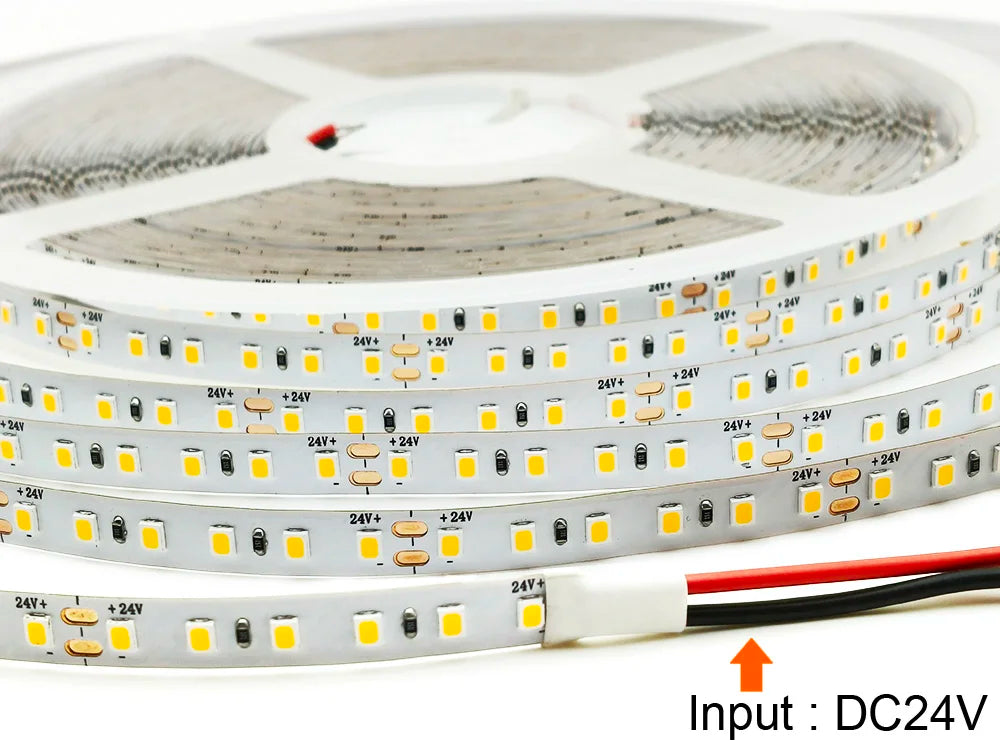

5. Input voltage:  DC 24V / DC12V（It can only be one of the voltages）.

6. Light Color:

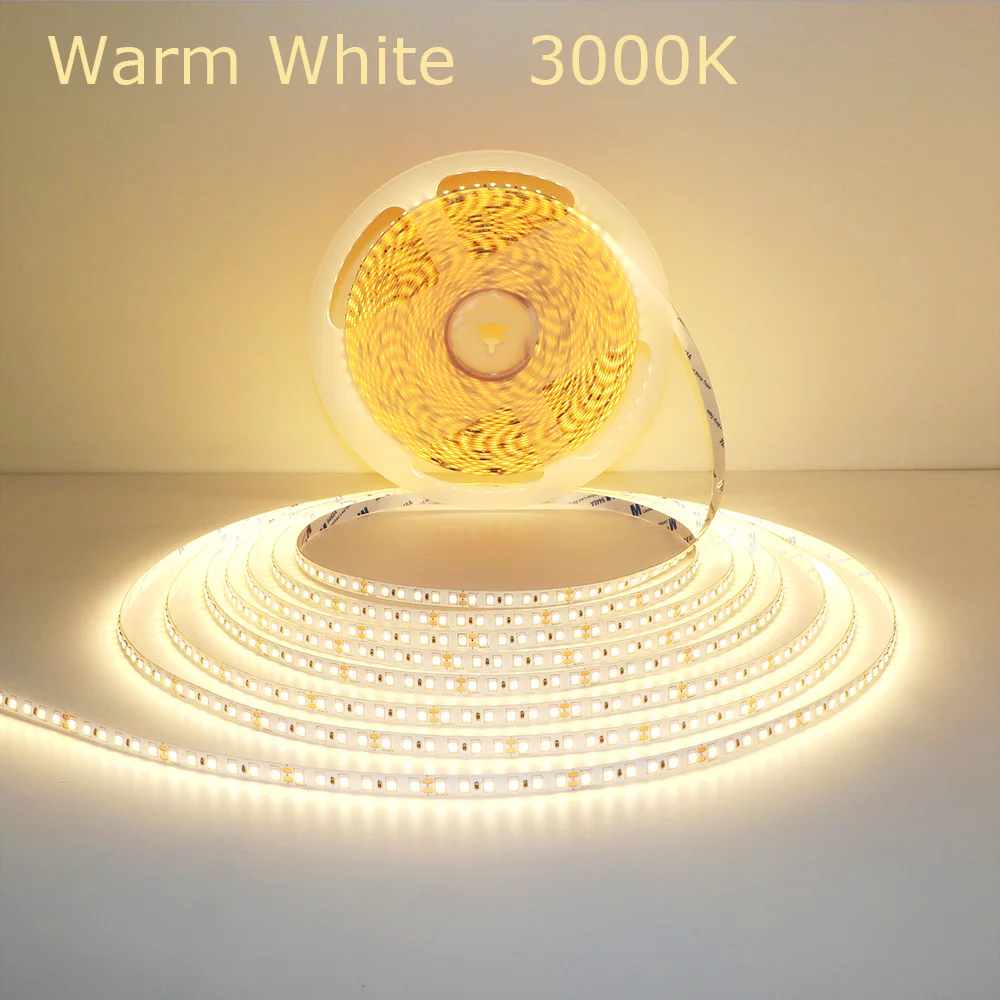

3000K - Warm White,

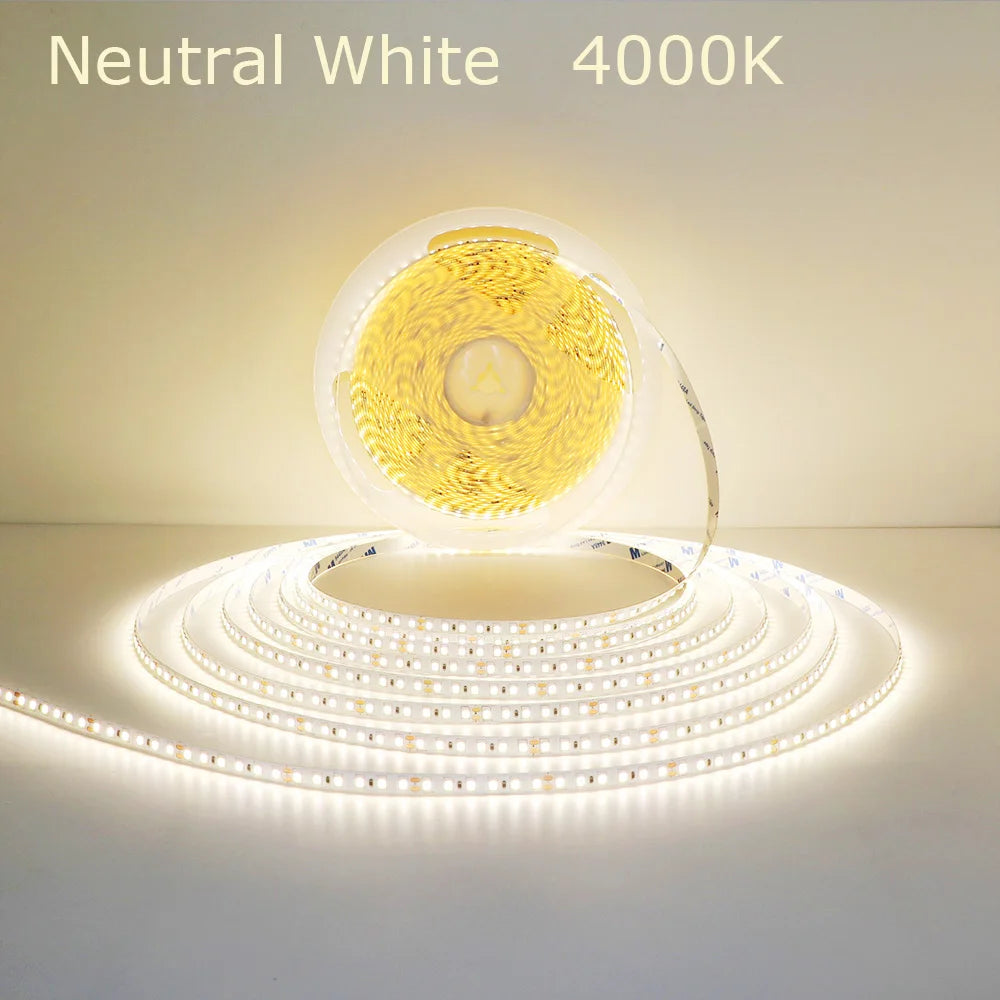

4000K - Neutral White,

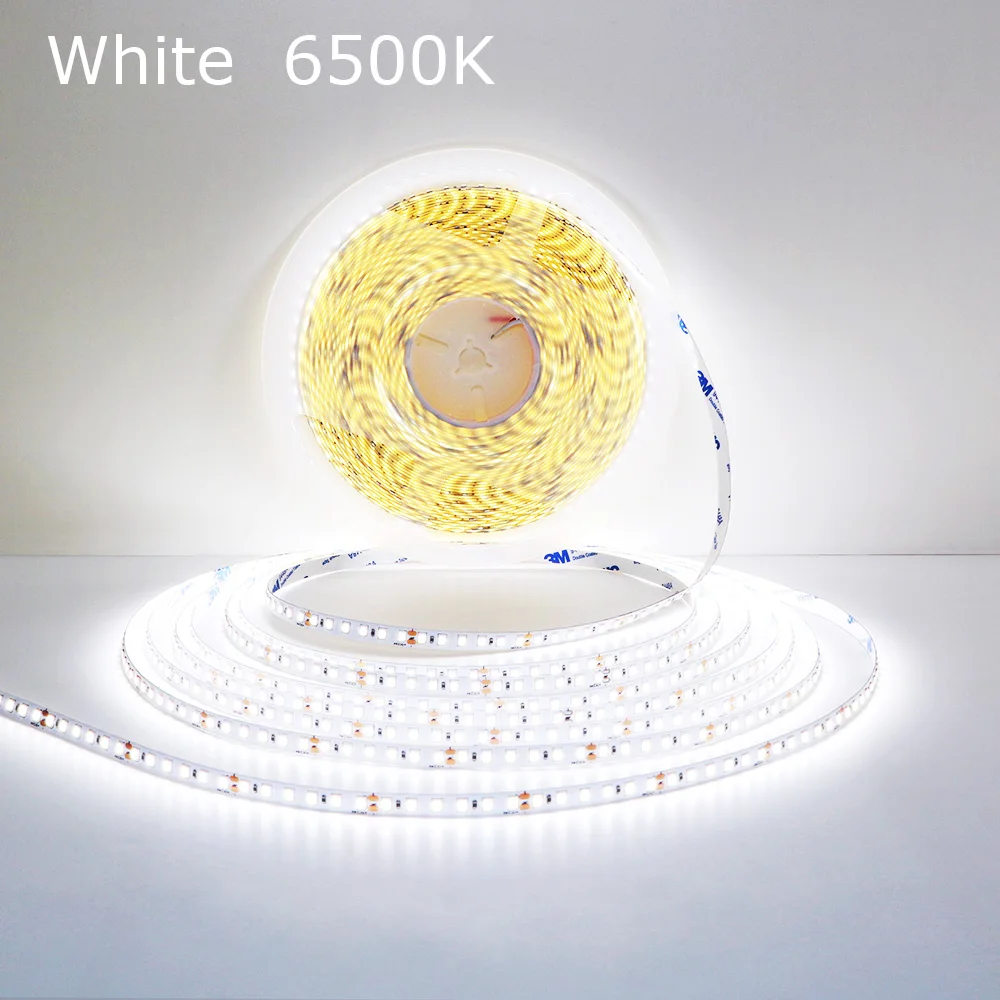

6500K - White (Or Cold White).

7. Protection Rate: Non-waterproof (IP20).

8.  Power per meter: About 8W (Approximately 8 watts per meter, the power of the light strip will vary depending on the length),

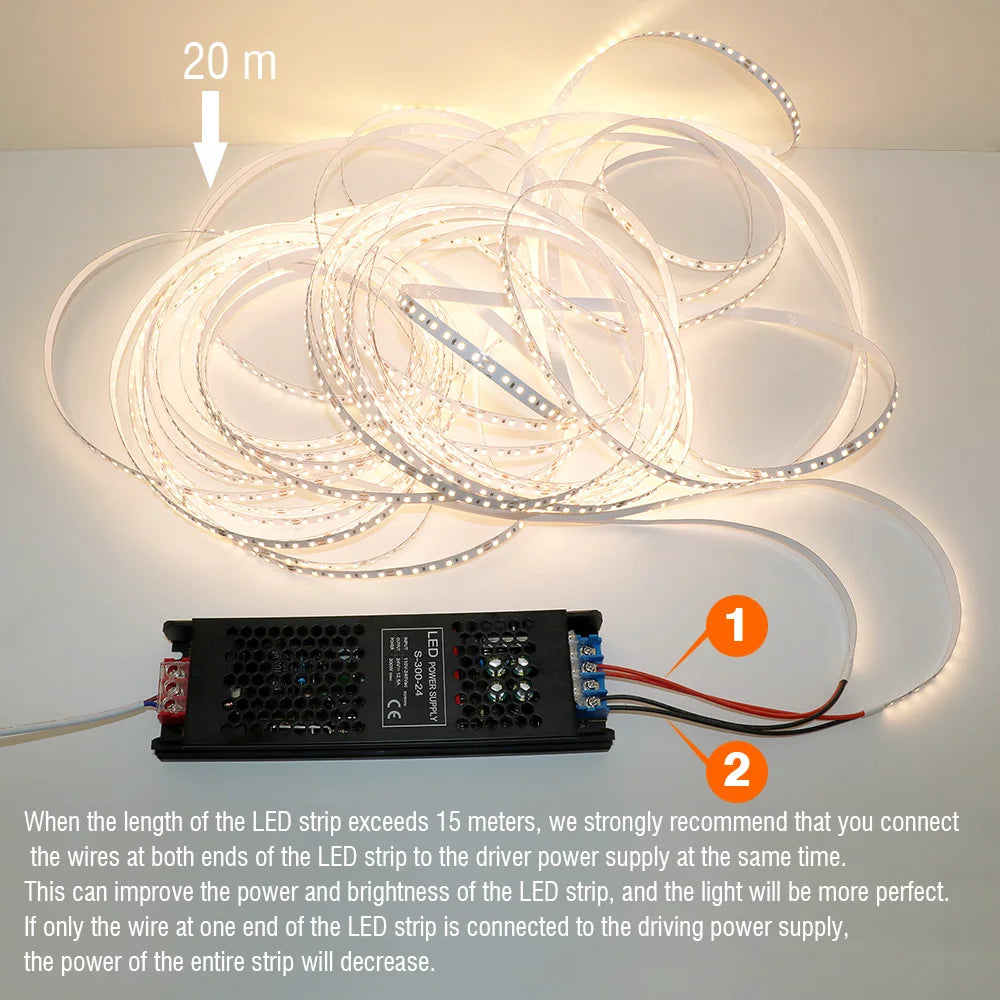

Special Reminder: When the length of the LED strip exceeds 15 meters, we strongly recommend that you connect the wires at both ends of the LED strip to the driver power supply at the same time. This can improve the power and brightness of the LED strip, and the light will be more perfect. If only the wire at one end of the LED strip is connected to the driving power supply, the power of the entire strip will decrease.

9.  Beam angle: 150°.

10. Working Temperature: -20° to 50°

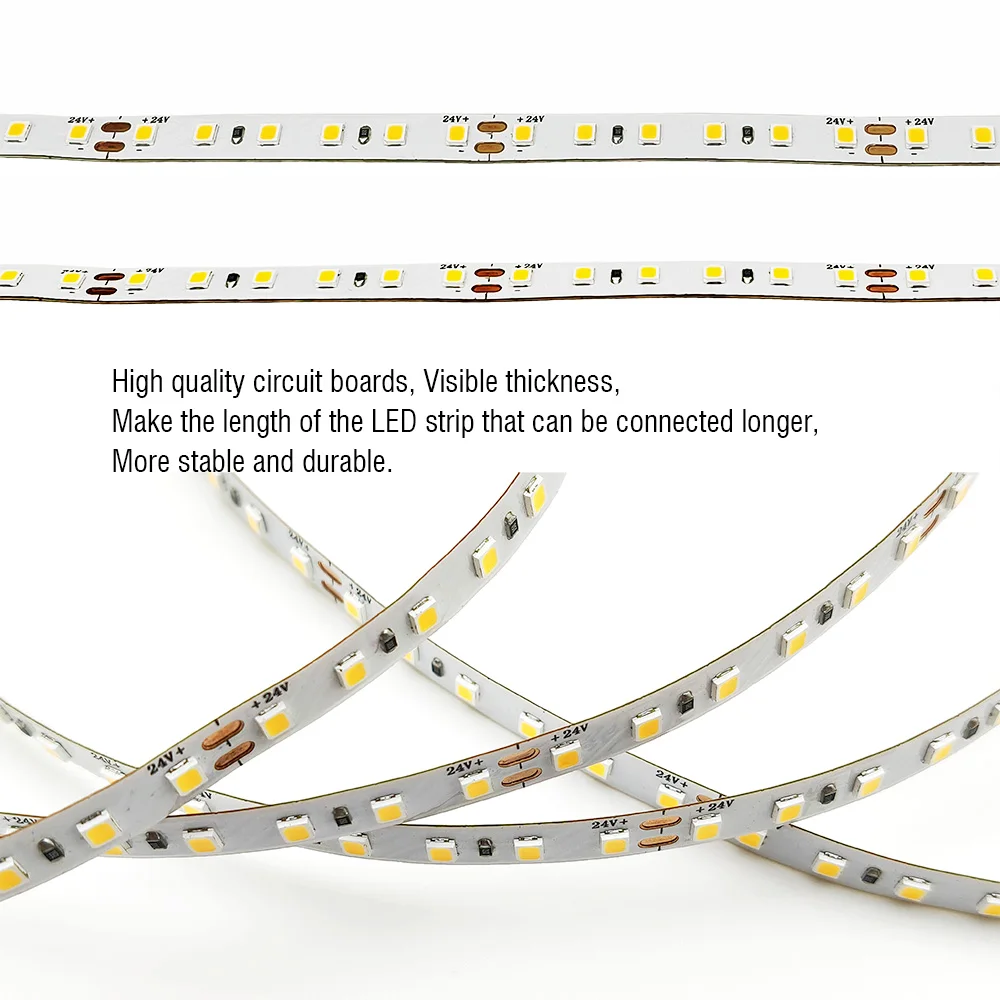

11 .High quality circuit boards,Visible thickness,Make the length of the LED strip that can be connected longer,More stable and durable.

12. This product is just a light strip, it does not include any driver power supply, dimmer, or controller, and it does not include any accessories

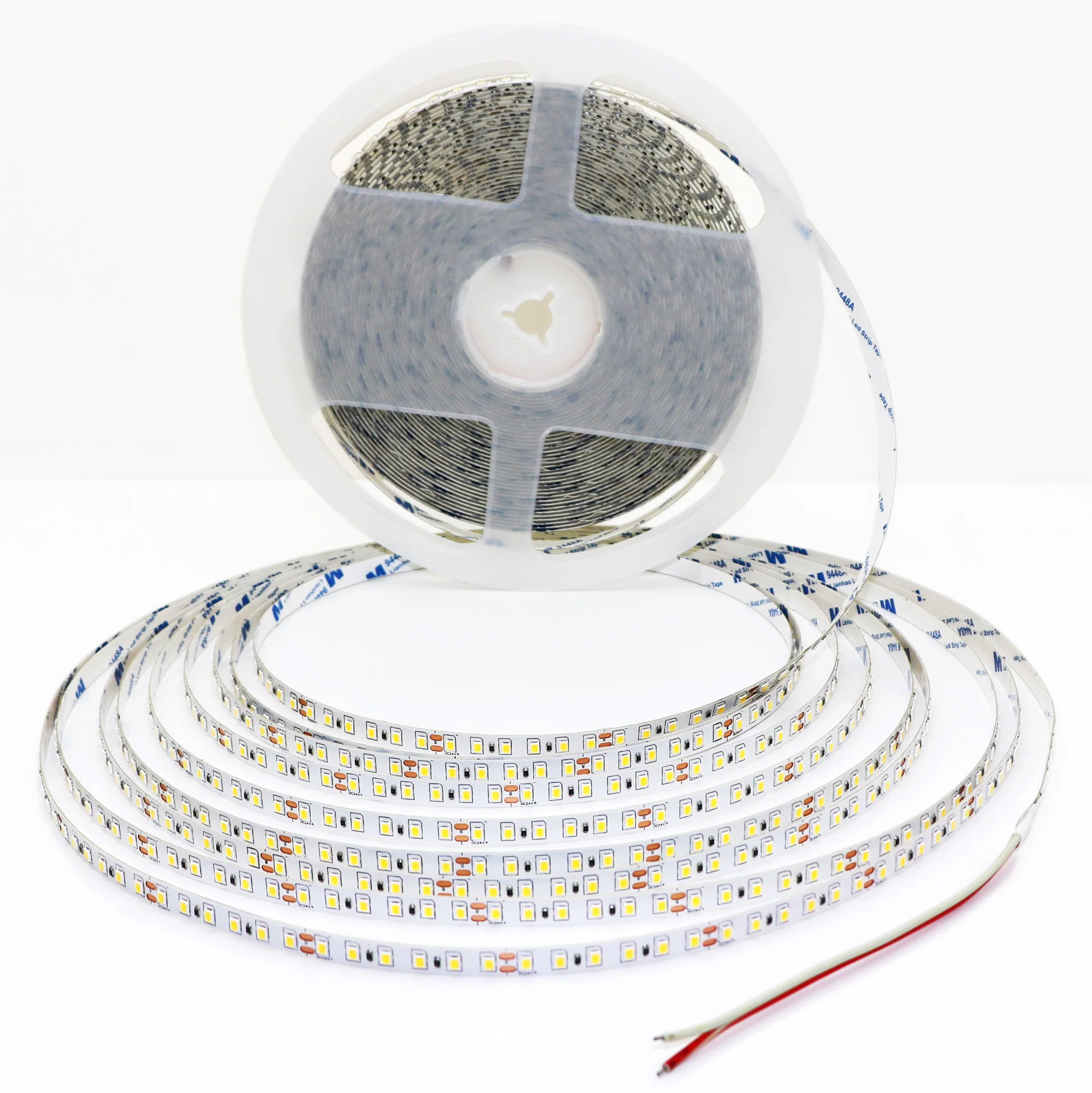

13. There is double-sided tape on the back of the LED light strip, Which is very sticky and can be freely pasted where you want to paste.

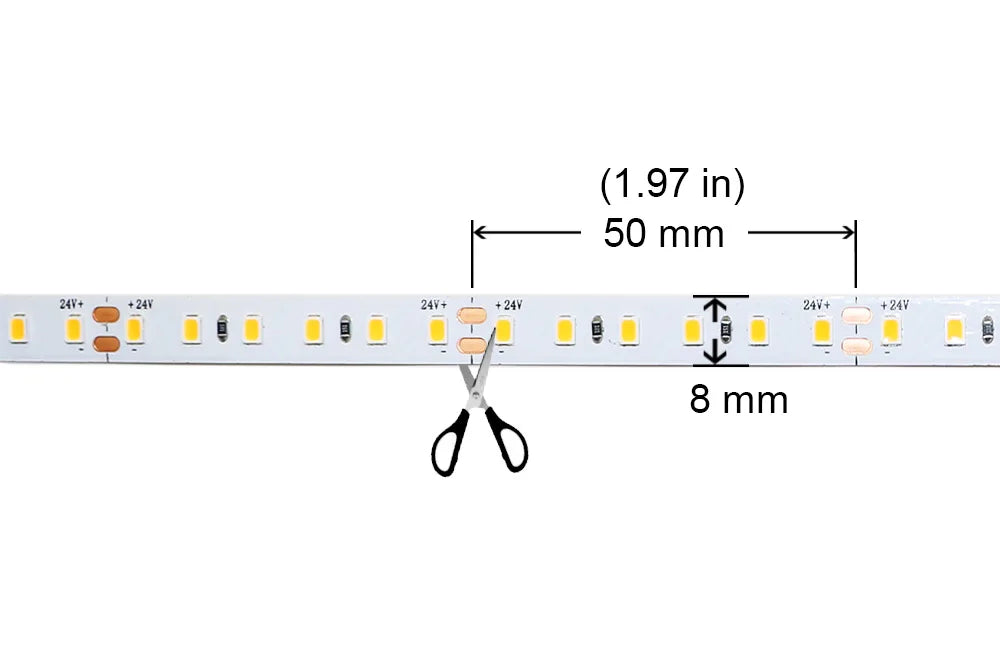

14. The cutting distance of 12V LED strip is 25mm, and that of 24V LED strip is 50mm.

15.The LED strip must be connected to the voltage DC12V or DC24V corresponding to the LED strip. or the LED strip will be burnt out.

16. This LED strip can only be used after being connected to the city voltage by purchasing additional transformers. If you do not know how to select the power of the transformer, please contact us, and we can tell you how to select the power of the power supply.

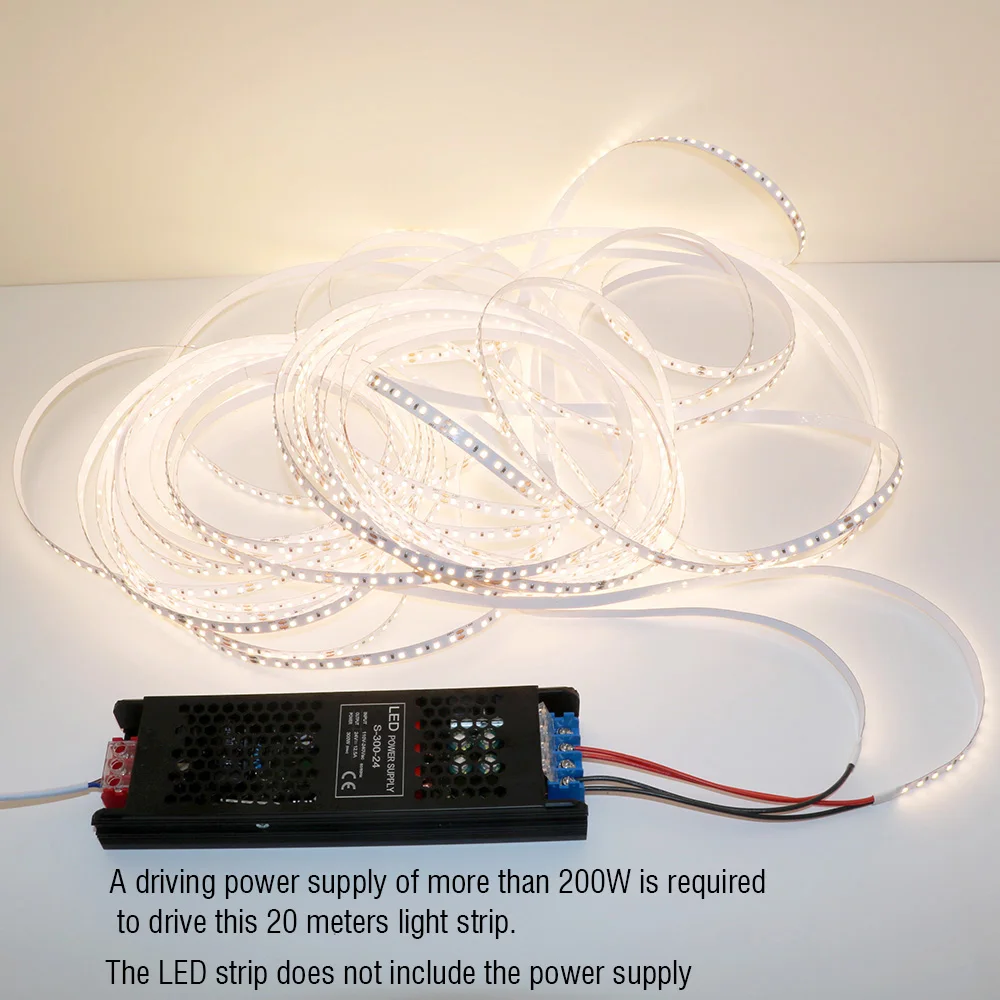

17. The 20m LED strip can only be driven by a driving power supply of more than 200W. The higher the power of the driving power supply, the better. (The product itself does not include any controller, connector or power supply)

For light strips of different lengths, we recommend using transformers with the following power:

5-meters LED strip requires transformer wattage:60W

10 meters LED strip requires transformer wattage:100W

15 meters LED strip requires transformer wattage:150W

20 meters LED strip requires transformer wattage:200W

25 meters LED strip requires transformer wattage:300W

30 meters LED strip requires transformer wattage:400W

18. When the LED strip flickers intermittently, it indicates that the power of the drive power used for the LED strip is insufficient, This is not an issue with the LED light strip,and the drive power with higher power needs to be replaced.
