SPECIFICATIONS

Average Life (hrs): 50000h

Certification: CCC,ce,CE,RoHs

Choice: yes

Color Temp(K): 3000k-6000k,3000K/6000K

Delay time: 15/30/60/120seconds

Dimmers: PIR Motion Sensor

Feature 1: flowing led strip

Feature 2: led strip light water flow

Feature 3: led strip horse race

Feature 4: cob horse race led strip

Feature 5: horse racing led strip

Feature 6: chasing led strip light

High-concerned chemical: None

Is Batteries Included: No

Is Smart Device: No

Item Type: Strip

LED Chip Brand: sharp

LED Chip Model: COB

LEDs Number/M: 360

Luminous Flux: 2000-82000

Model Number: YSR-CGD-RGB,COB Horse Racing Strip

Nominal Voltage: Other

Occasion: LIVING ROOM

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Specifications (light beads / m): 360

Strip type: COB

Voltage: 24v

Waterproof: No

inductive distance: 8M

sensing angel: 120

sensing method: Thermal source sensing

Estimated Delivery Time: 9~16days

Description:

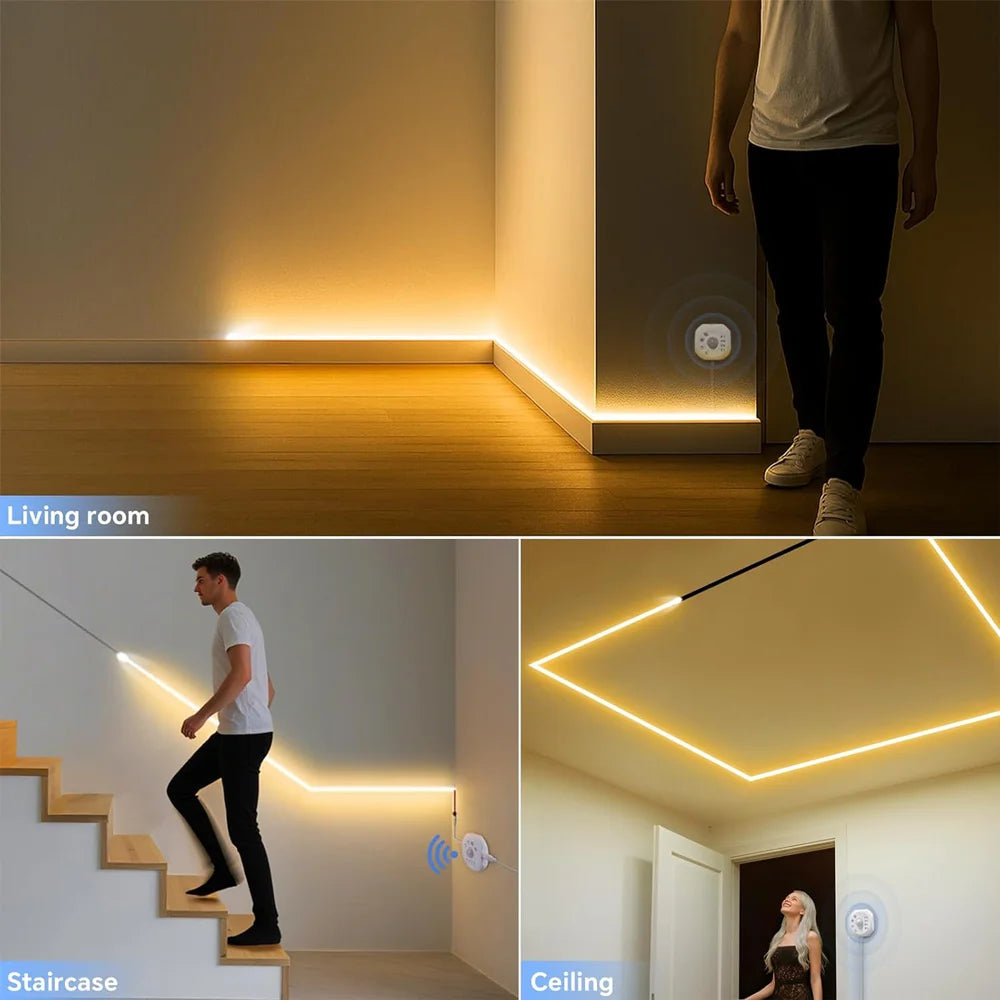

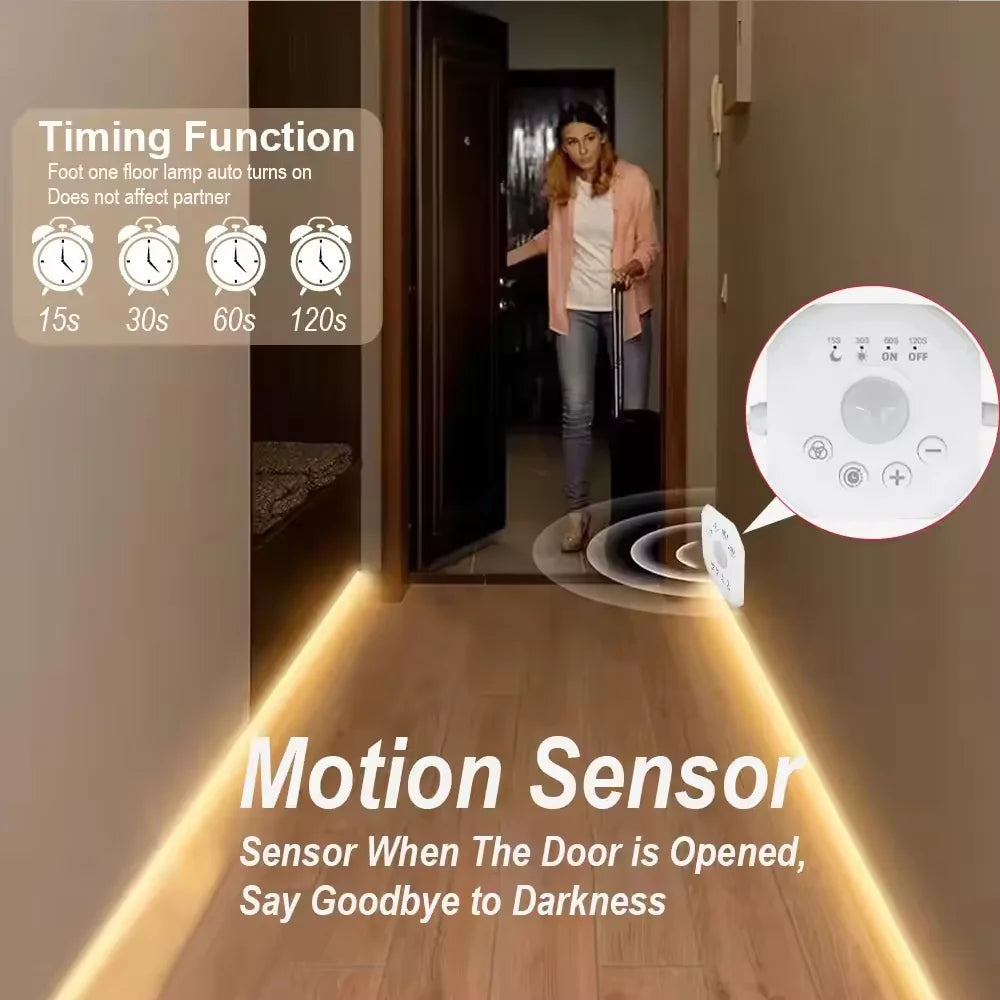

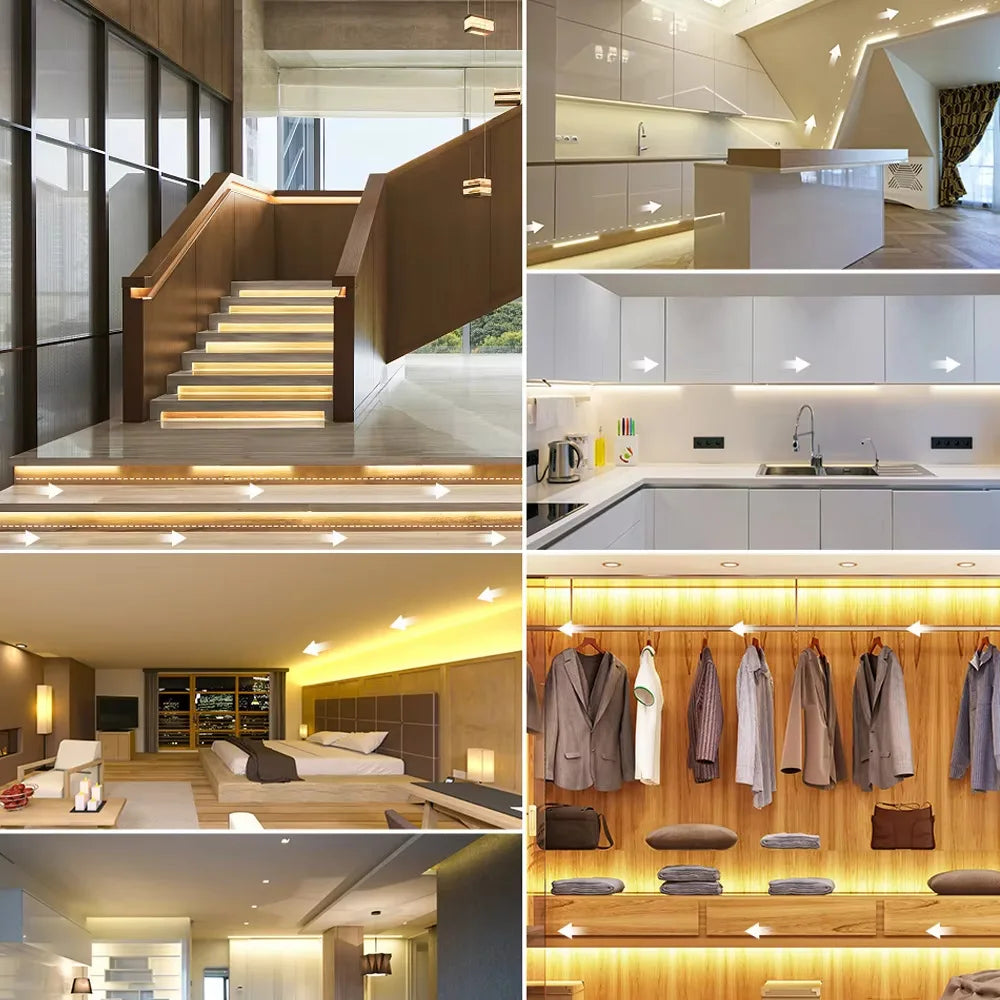

Upgrade your lighting system with this high-performance PIR motion sensor switch! Perfect for stairs, corridors, and smart homes, it combines energy efficiency with advanced automation.

Product Features:
Strong Anti-interference: Uses digital serial port type pyroelectric sensor head for stable and reliable performance.

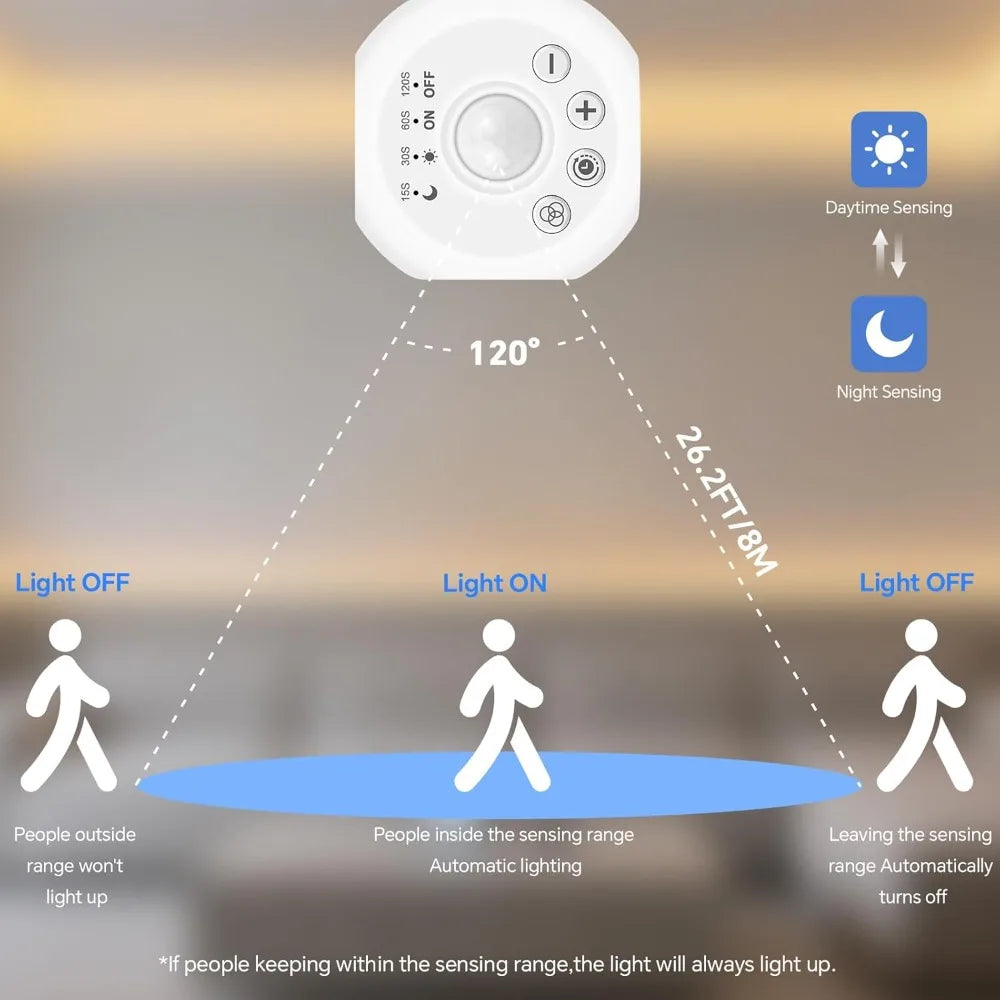

Automatic Light Measurement: Automatically detects ambient light intensity, turning lights on when someone is present and off when no one is detected.
Fully Automatic Sensing: Automatically turns lights on when detecting people and off when people leave, ensuring safety and energy efficiency without being affected by sound or other external factors.

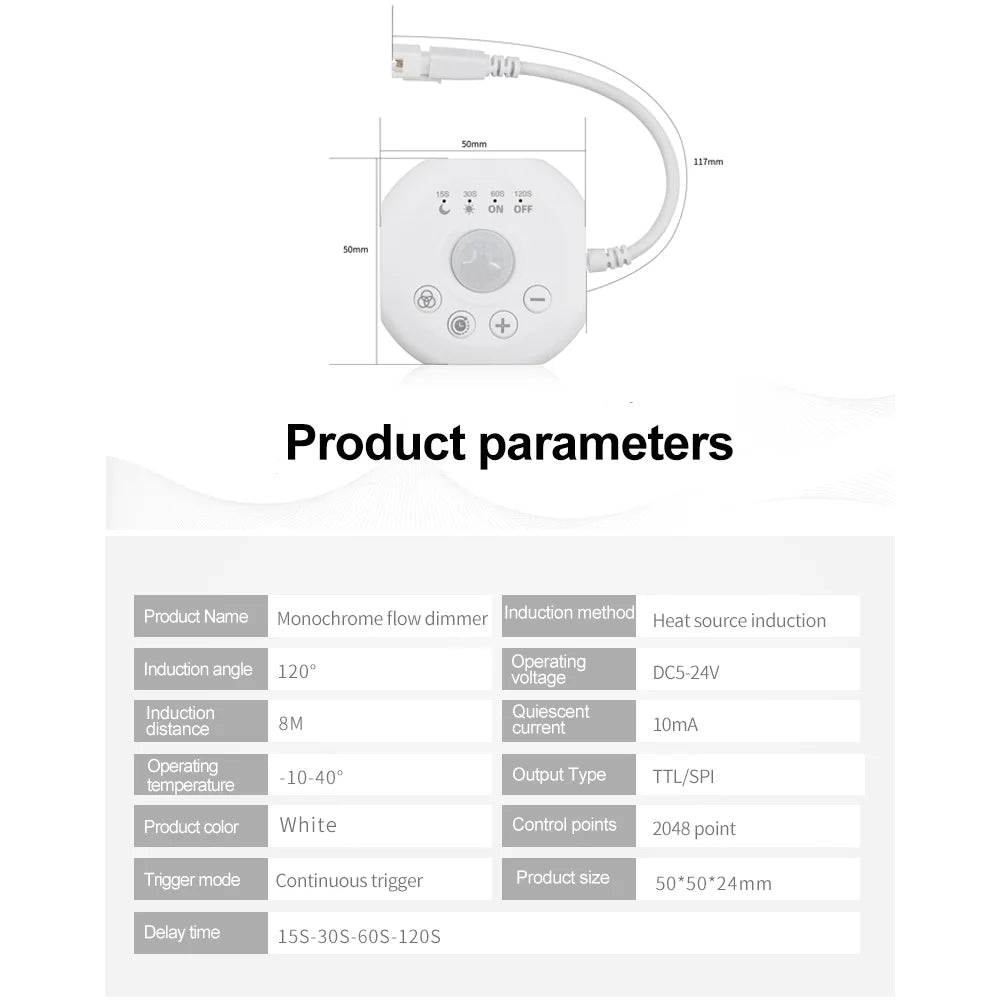

Technical Parameters:
Working Voltage: 5-24V DC
Static Current: 10mA
Output Type: TTL/SPI
Control Points: 2048 points
Delay Time: 15s/30s/60s/120s (adjustable)
Sensing Method: Thermal source detection

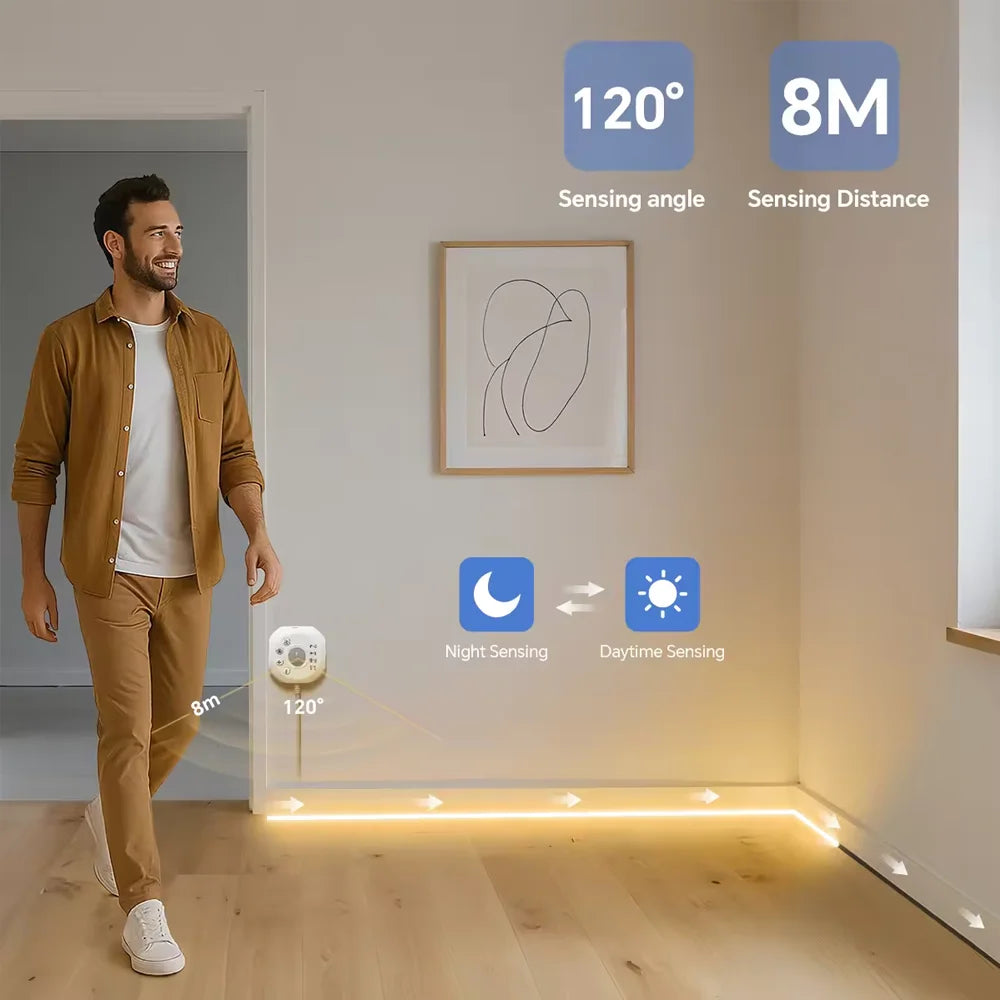

Sensing Angle: 120°
Detection Distance: 8 meters
Working Temperature: -10℃ to 40℃
Trigger Mode: Continuous trigger
Production size:50×50×24mm

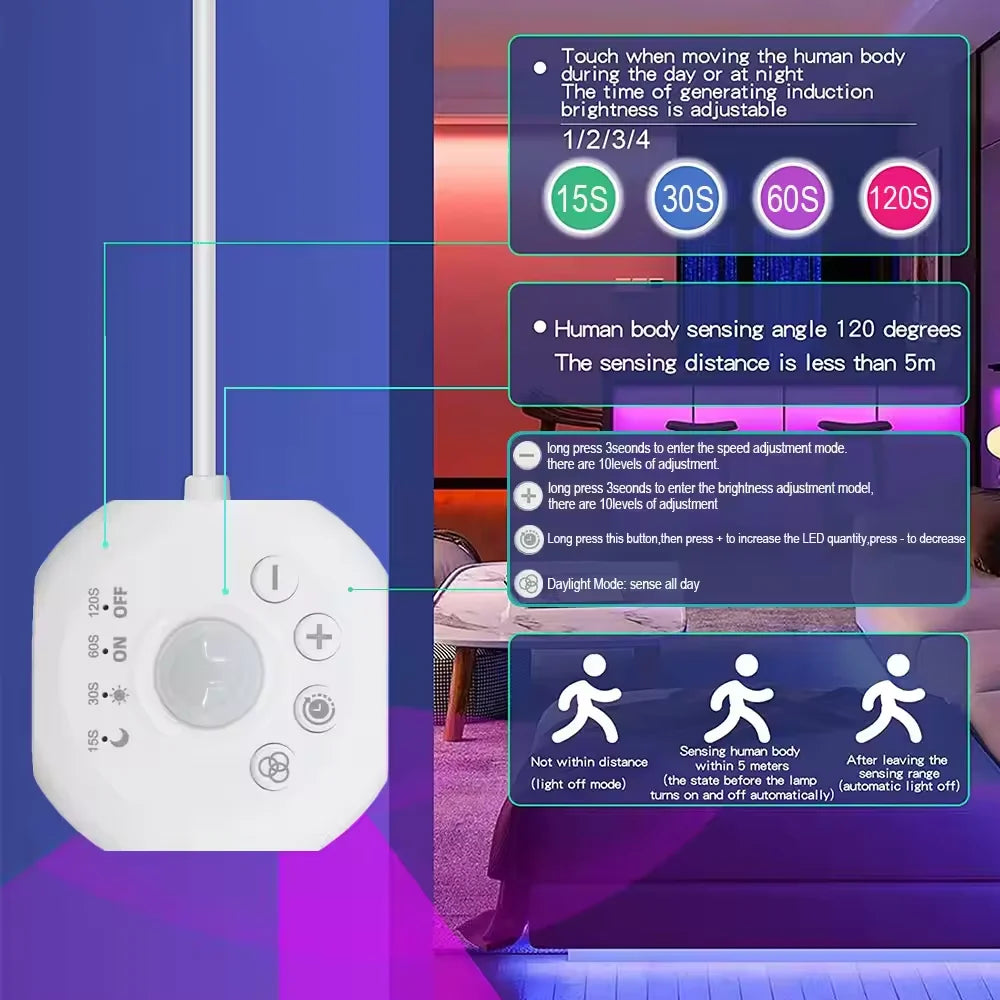

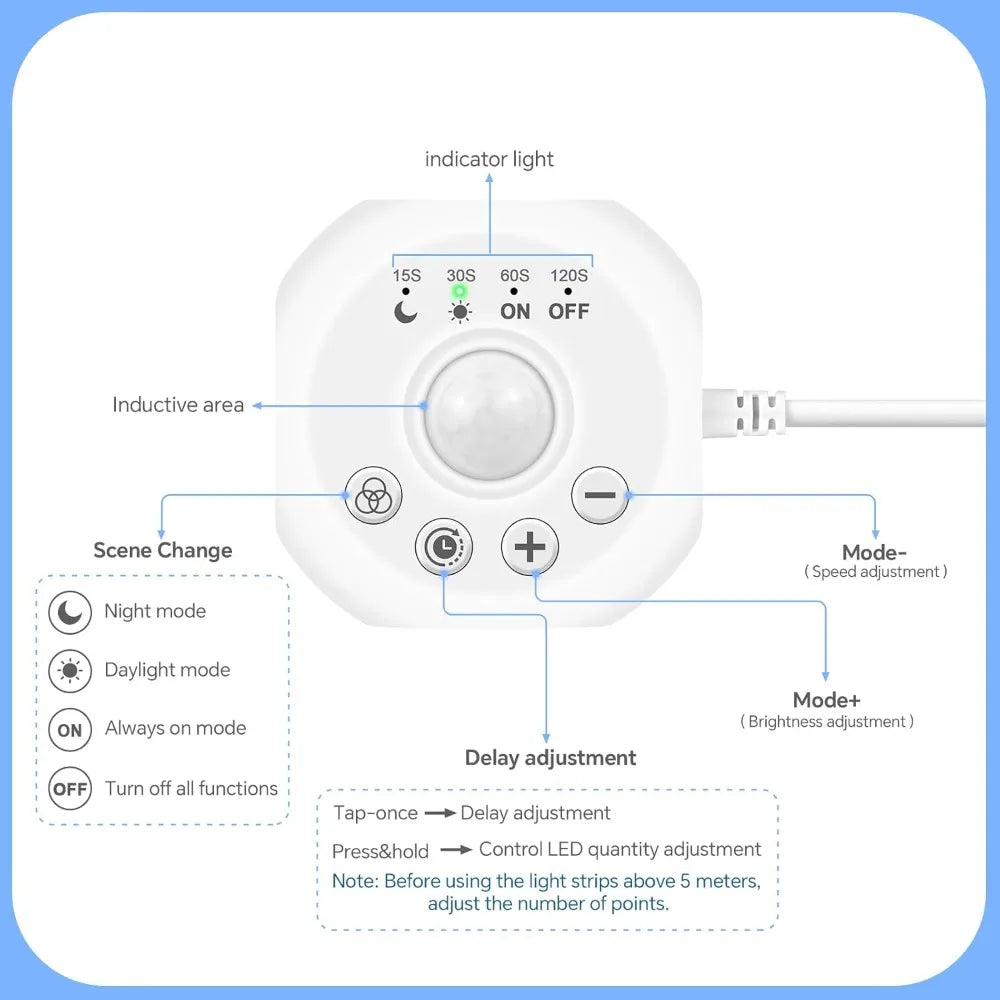

Adjustment Functions:

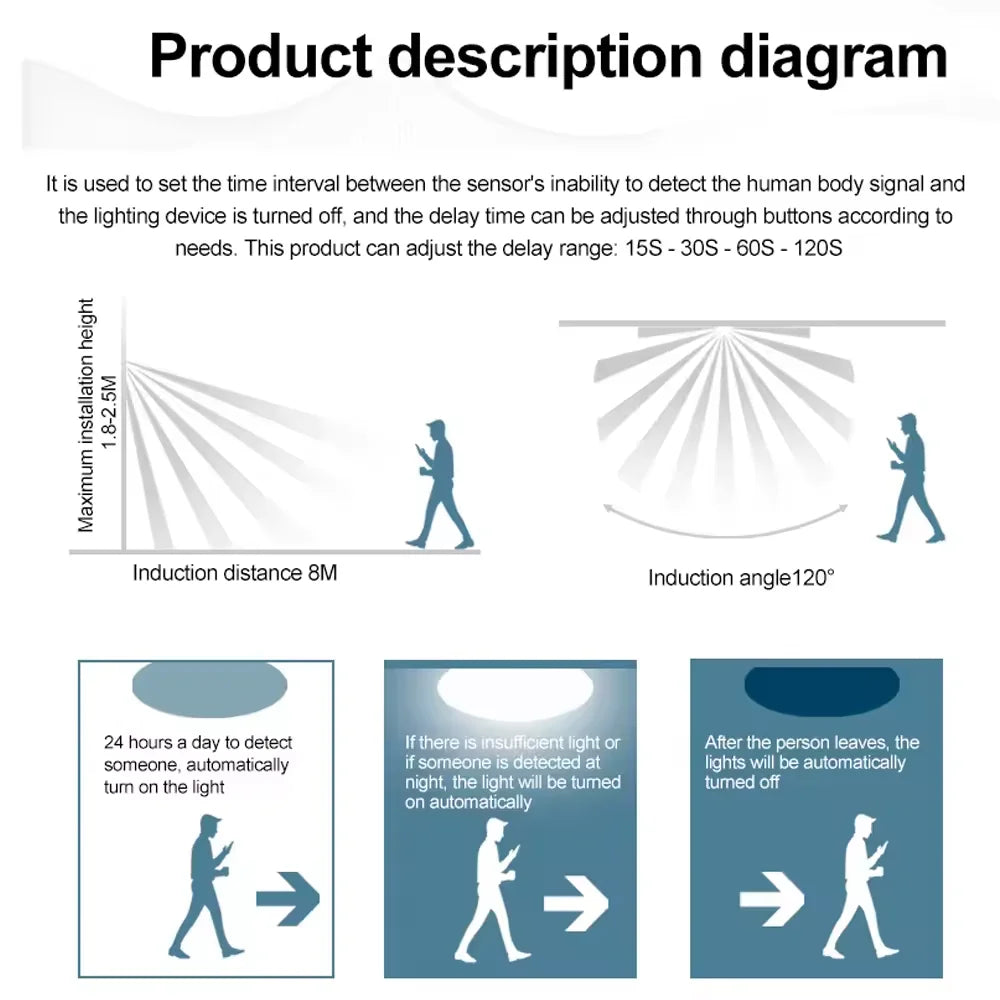

Delay Adjustment: Set time interval between no detection and light shut-off (15-120s)
Number Adjustment: Adjust control points (press +/- keys)
Brightness Adjustment: 10 levels (hold button for 3s)
Speed Adjustment: 10 levels (hold button for 3s)

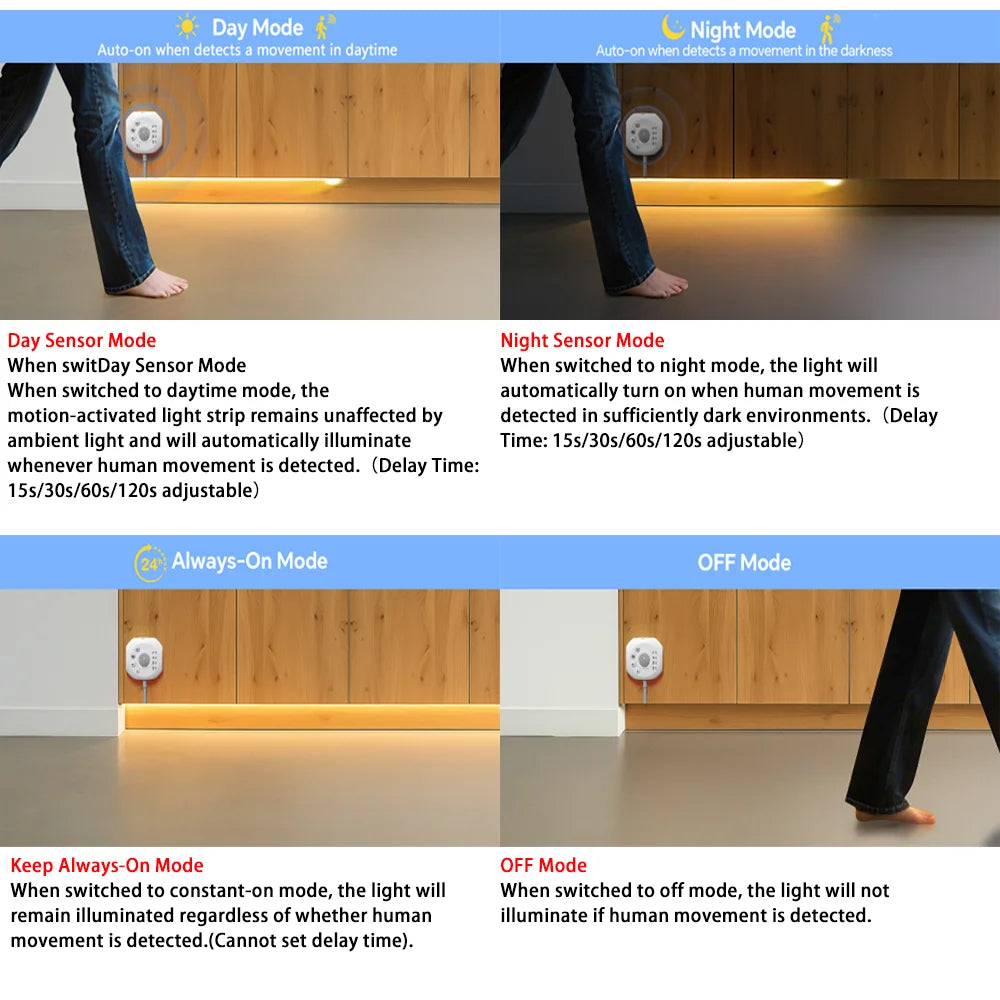

Scene Modes:
Night Mode: Only activates at night
Daylight Mode: Works regardless of light conditions
ON: Keep device powered (disable delay)
OFF: Disable all functions

Installation Notes:
Requires 10-20s preheat at first power-on
Detection effectiveness may vary based on environment, object size, and movement speed
Features repetitive trigger memory function (resets delay timer with movement)
Not waterproof - keep away from moisture
120° sensing angle requires proper installation

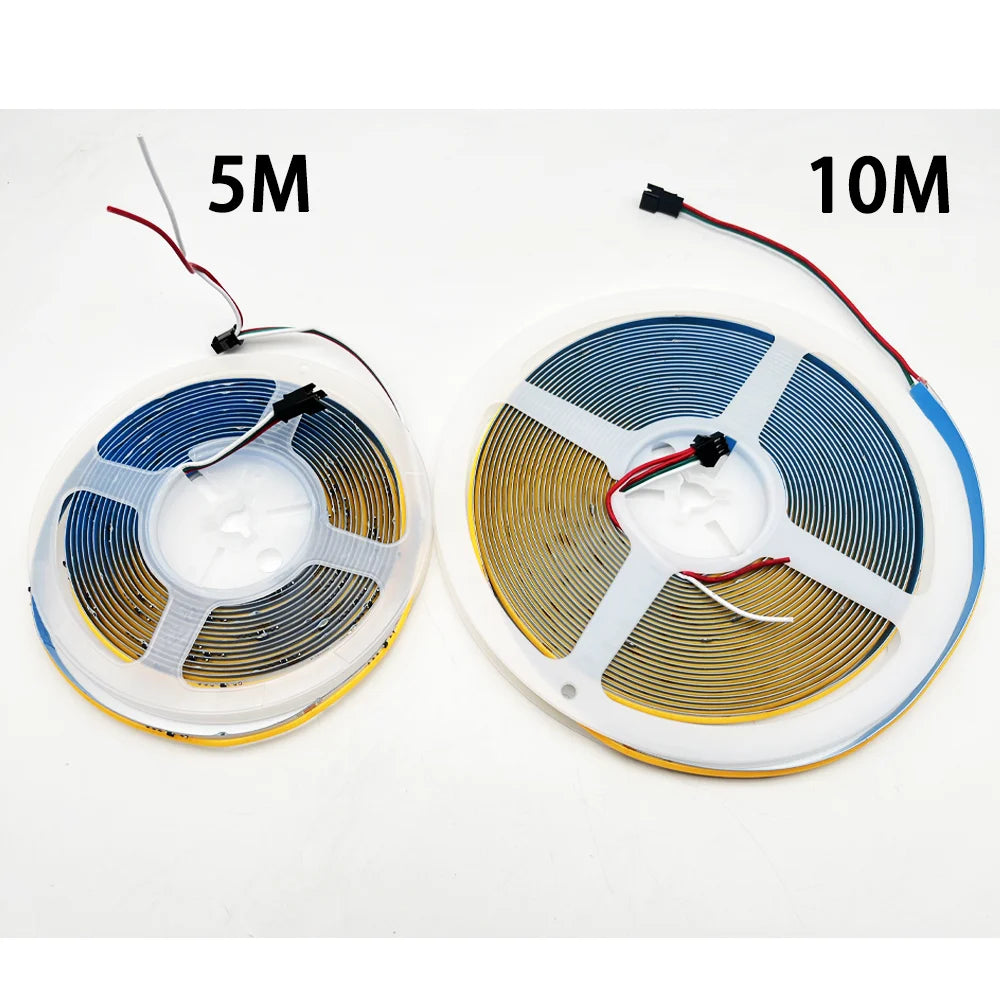

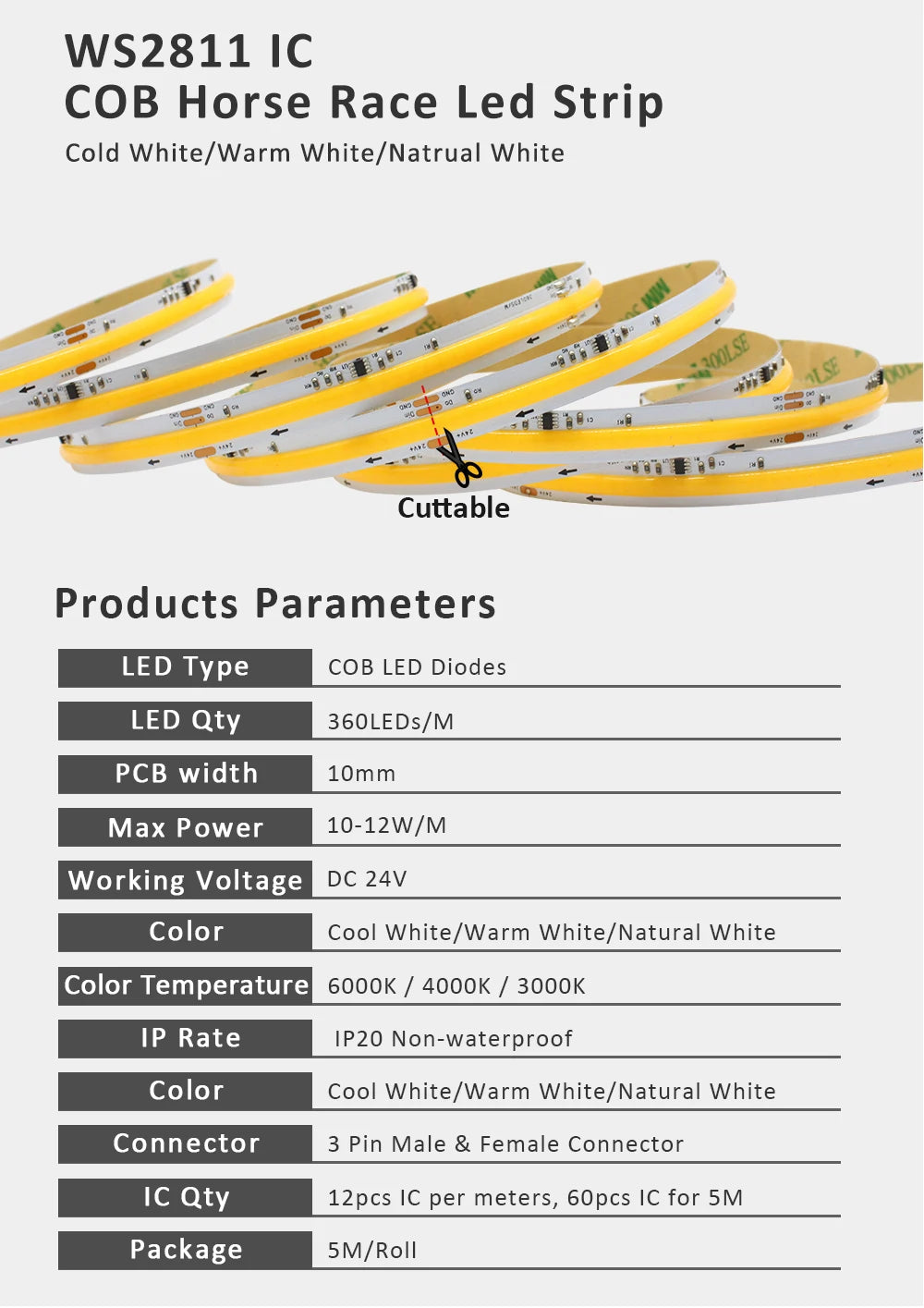

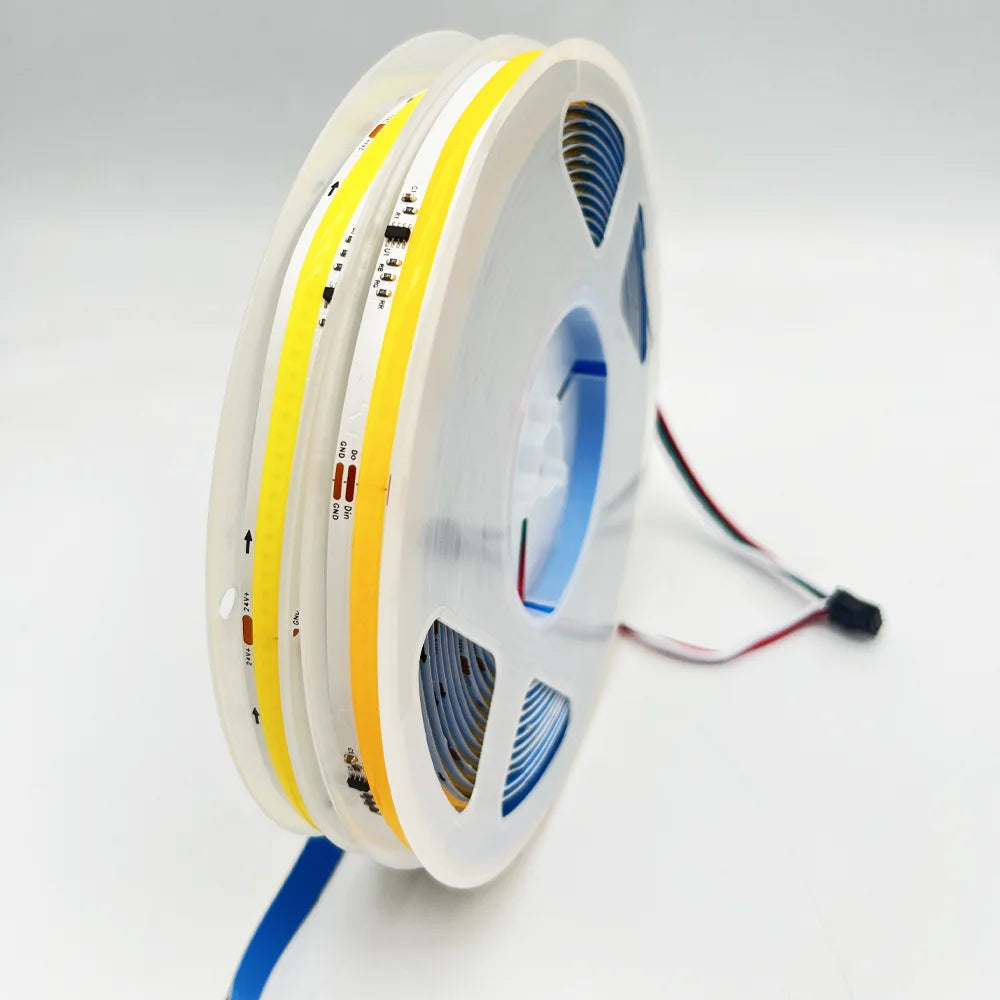

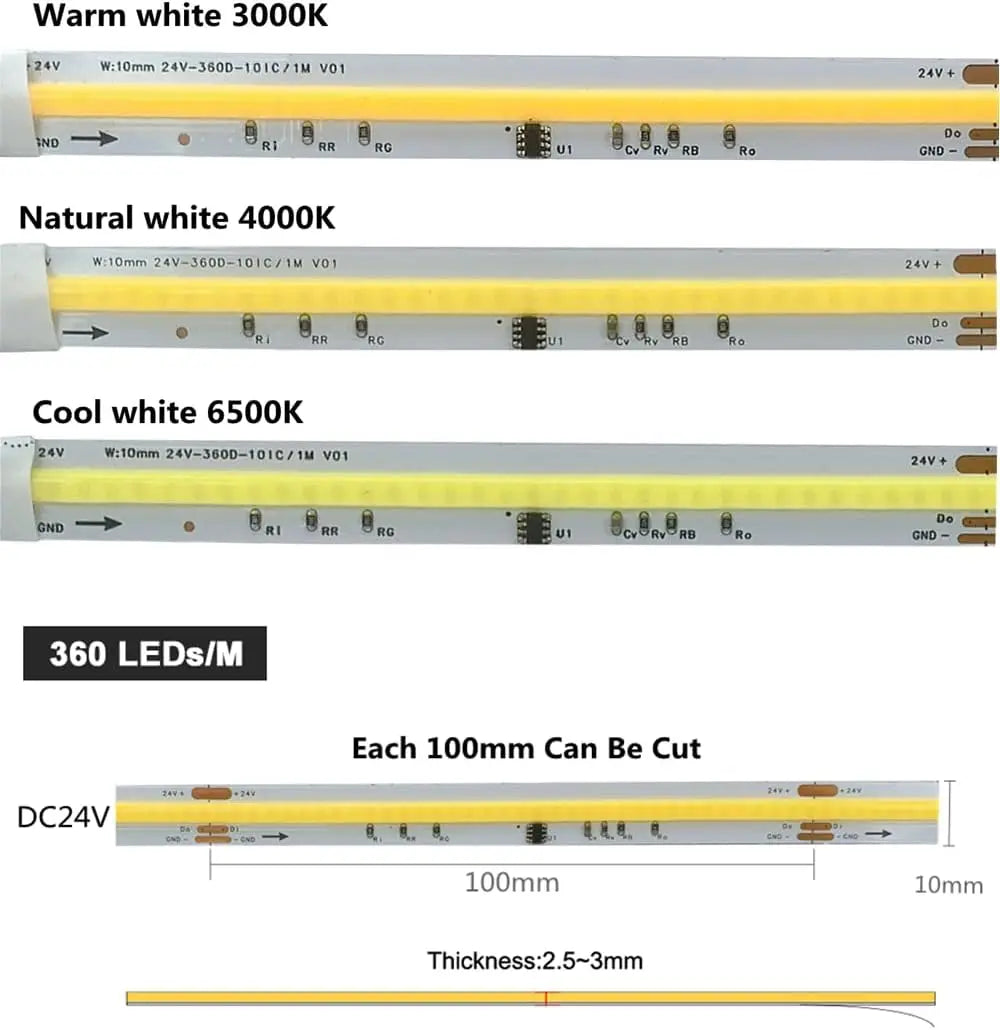

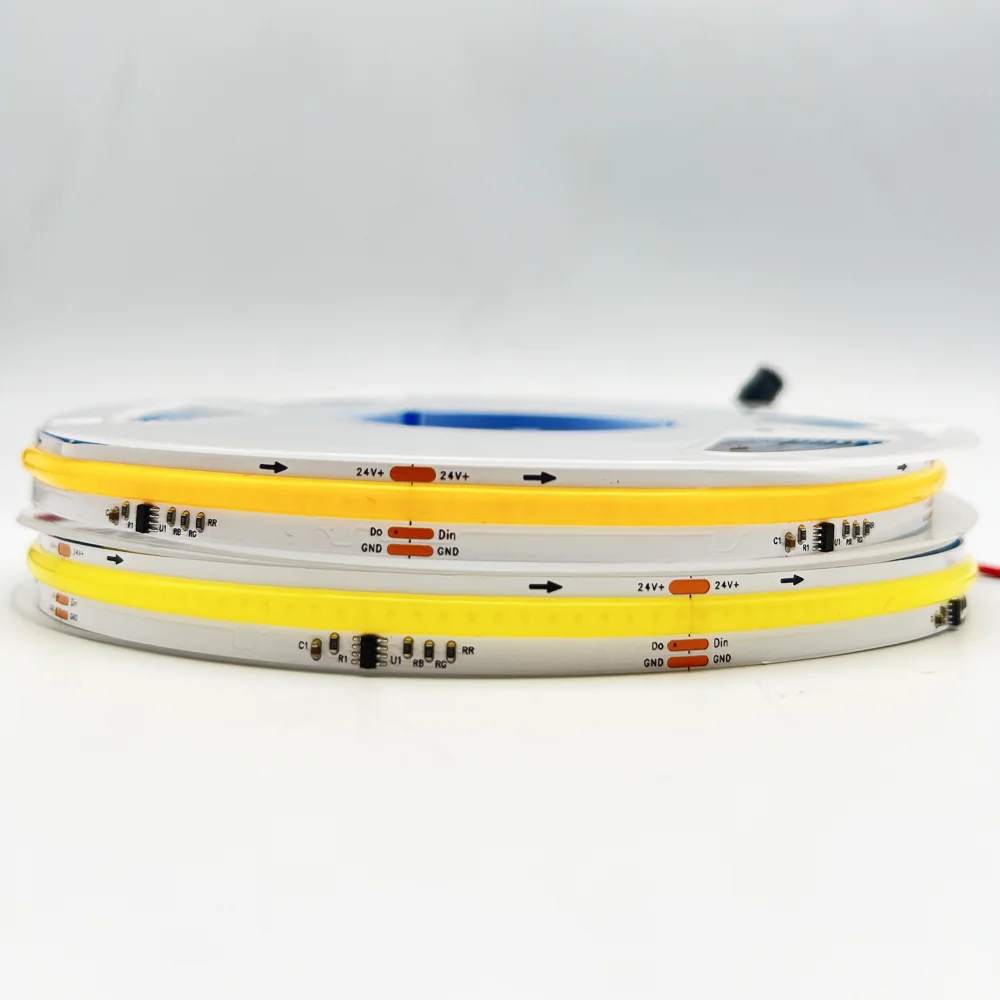

2811 COB LED Strip Specifications:
LED Type: COB LED Diodes
LED Qty: 360LEDs/M
PCB width:10mm
Max Power: 10-12W/M
Working Voltage: DC 24V
Color:  Cool White / Warm White / Natural White

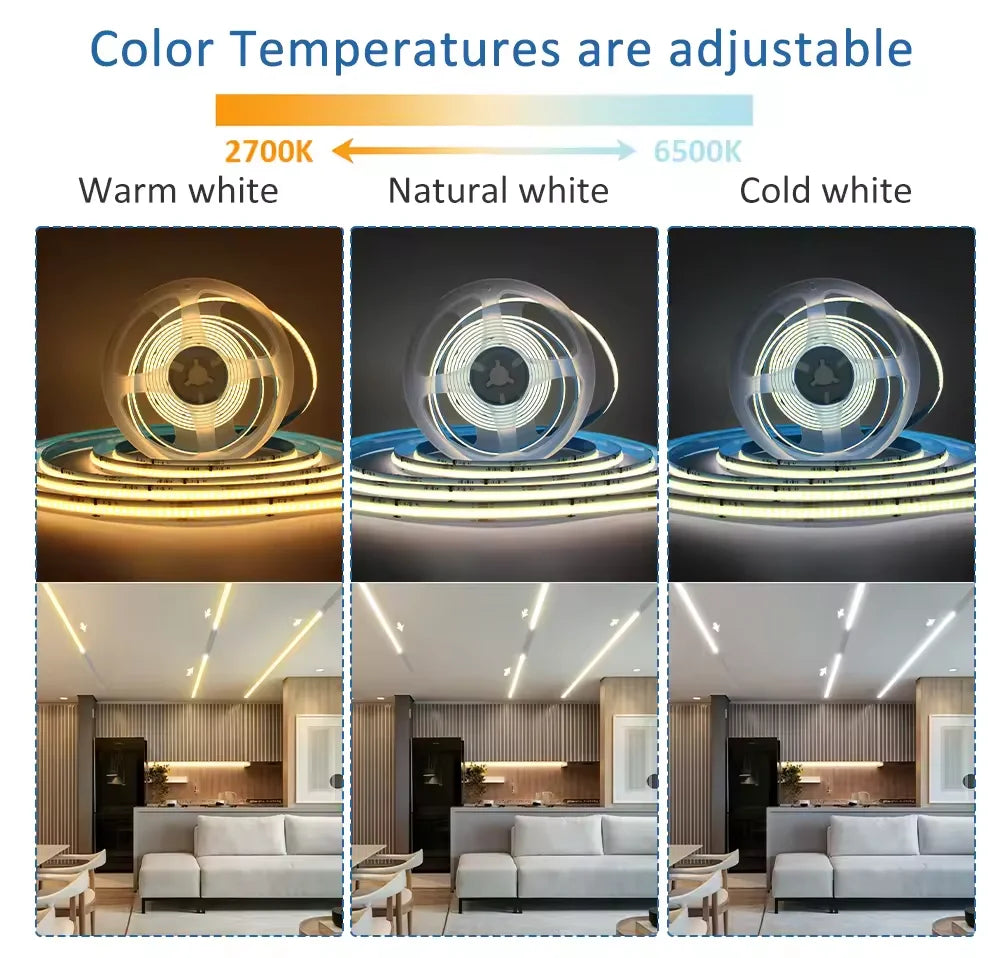

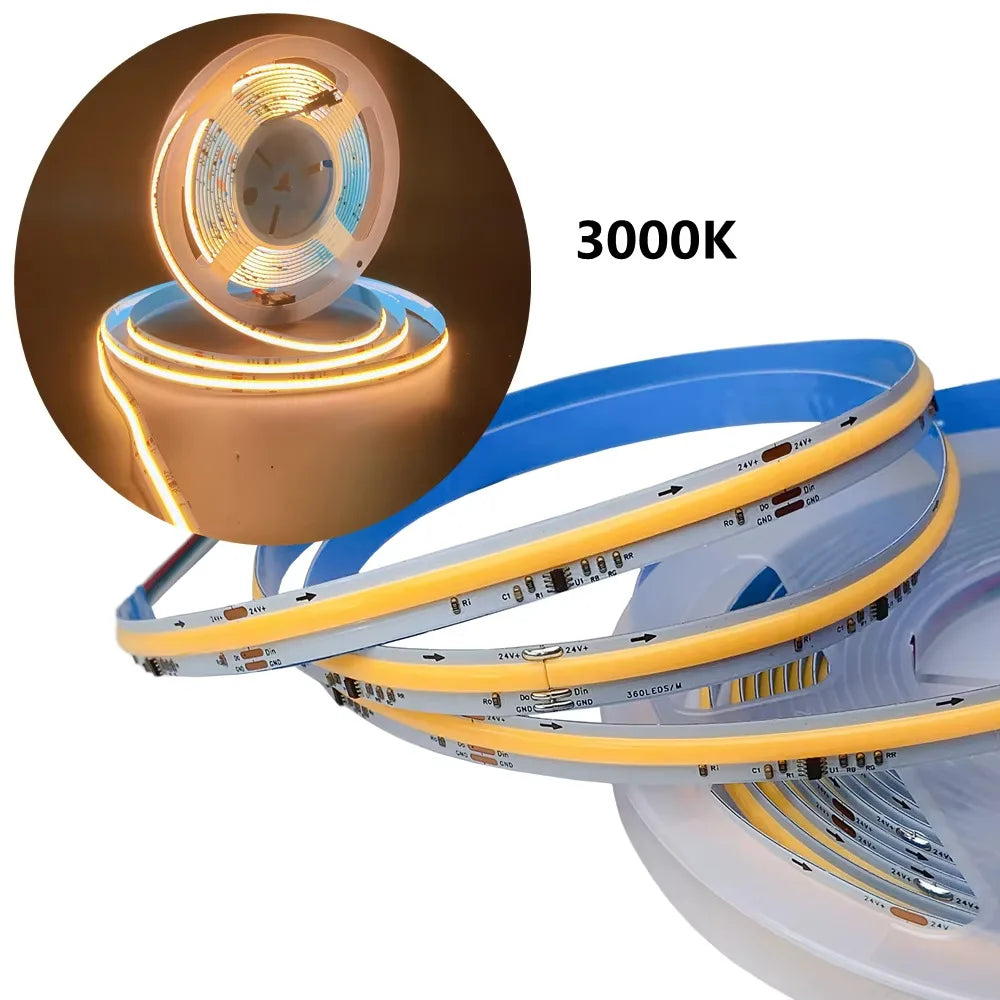

Color Temperature:  Cool White 6000K / Warm White 3000K
IP Rate: IP20 Non-waterproof

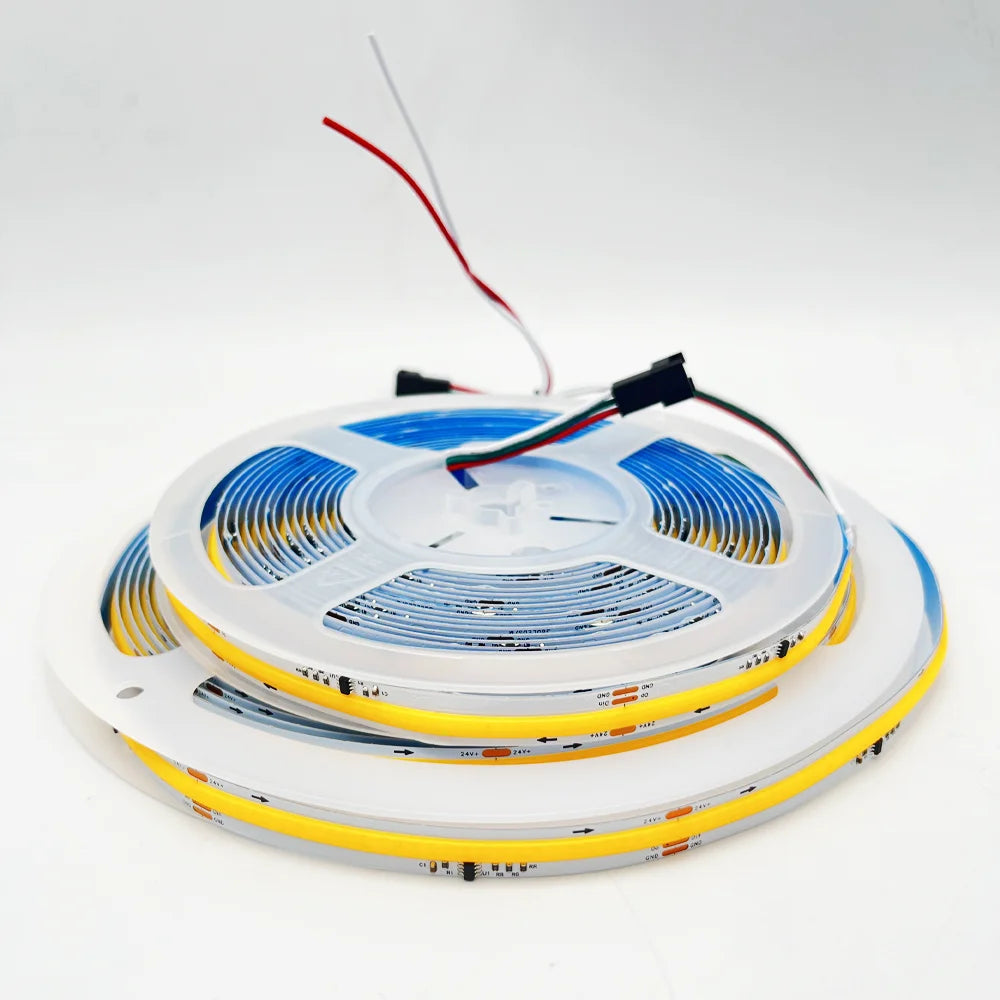

Connector: 3 Pin Male & Female Connector

Attention
You can freely choose and combine them for use. We recommend pairing them as 5M and 10M sets

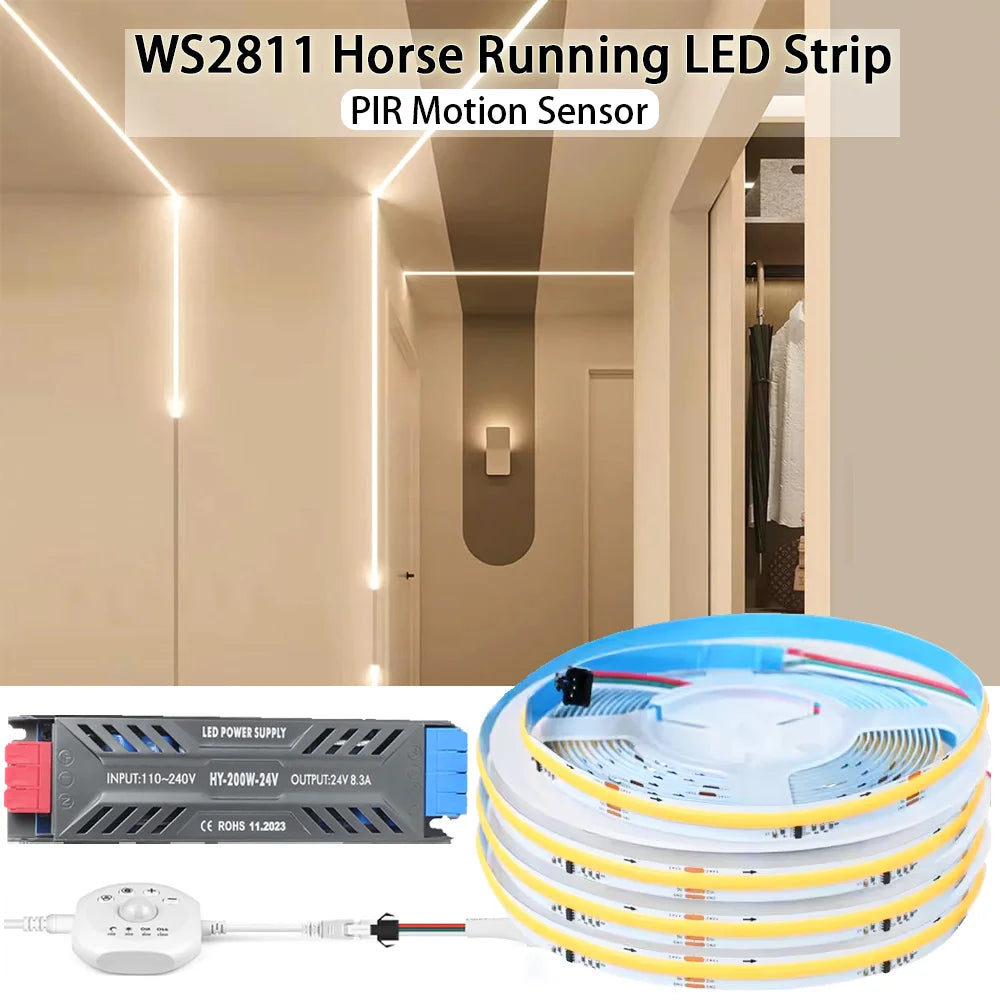

5M set: 5M COB light strip (white/warm white/neutral white)+dimmer+24V 60W power supply
10M set: 10M COB light strip (white/warm white/neutral white)+dimmer+24V 200W power supply
