SPECIFICATIONS

Advantage: No need to complicatedly wire, easy to install

Average Life (hrs): 50000H

Certification: ce,GS,LVD,ROHS,UL,CE,RoHs

Color Temp(K): 3000K 4000K 6000K

Features: support for customised step counts 10-40 steps

Function: Motion Sensor

High-concerned chemical: None

Is Batteries Included: No

Is Smart Device: No

Item Type: Strip

LED Chip Brand: SANAN

LED Chip Model: SMD5050

LEDs Number/M: 480leds

Luminous Flux: 2000-82000

Material: plastic

Max. Load Power: 240W

Model Number: LED Stair Light Strip set,Stair LED Strip Set

Nominal Voltage: 24V

Occasion: LIVING ROOM

Origin: Mainland China

Power Consumption (W/m): 8.64W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 480leds

Strip type: COB

Voltage: 24v

Warranty: 2 years warranty

Waterproof: No

Estimated Delivery Time: 9~17days

Product description

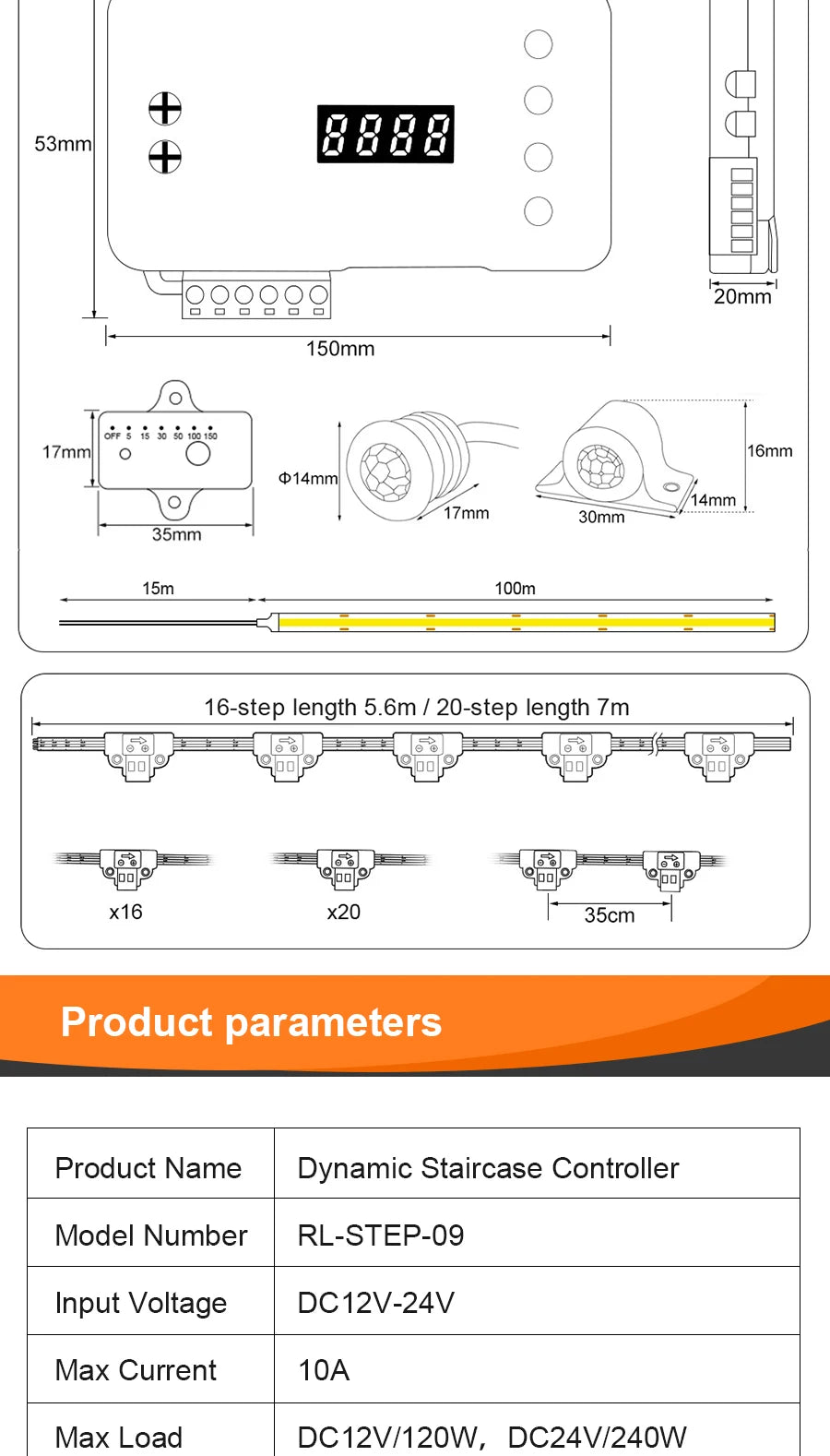

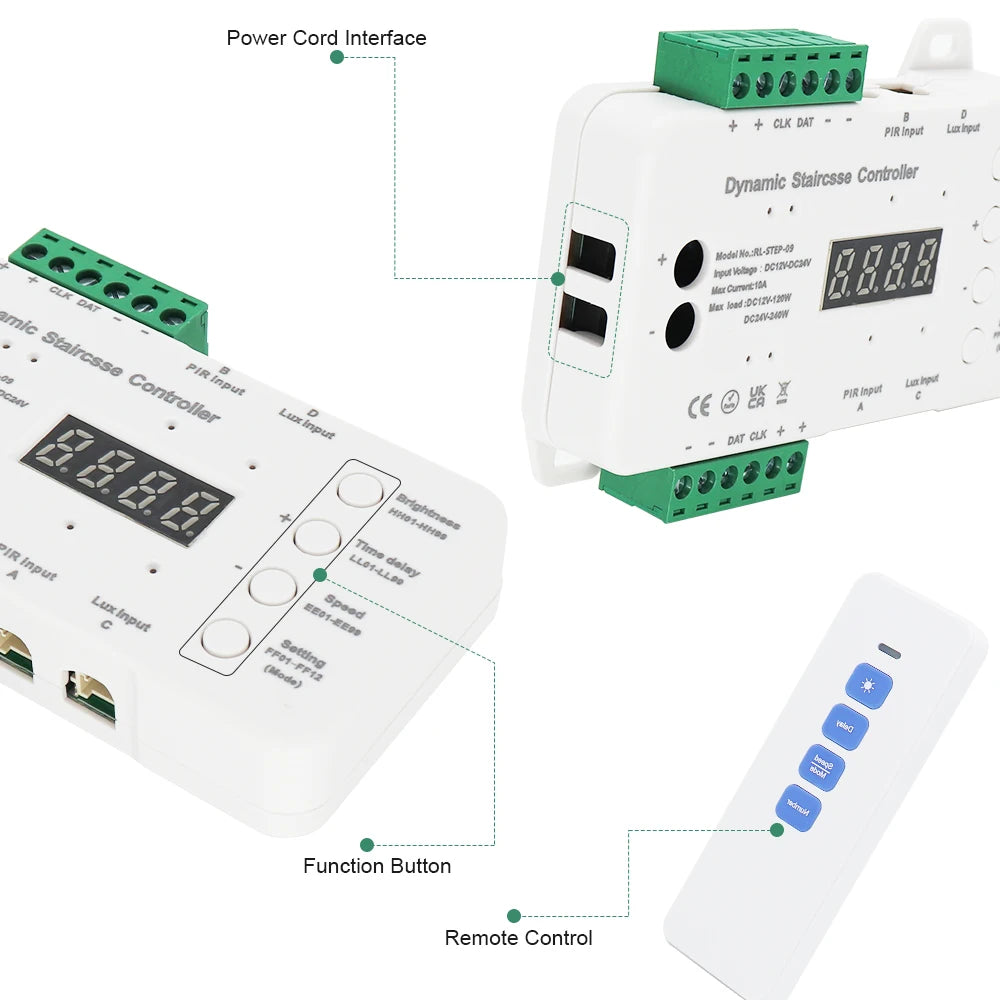

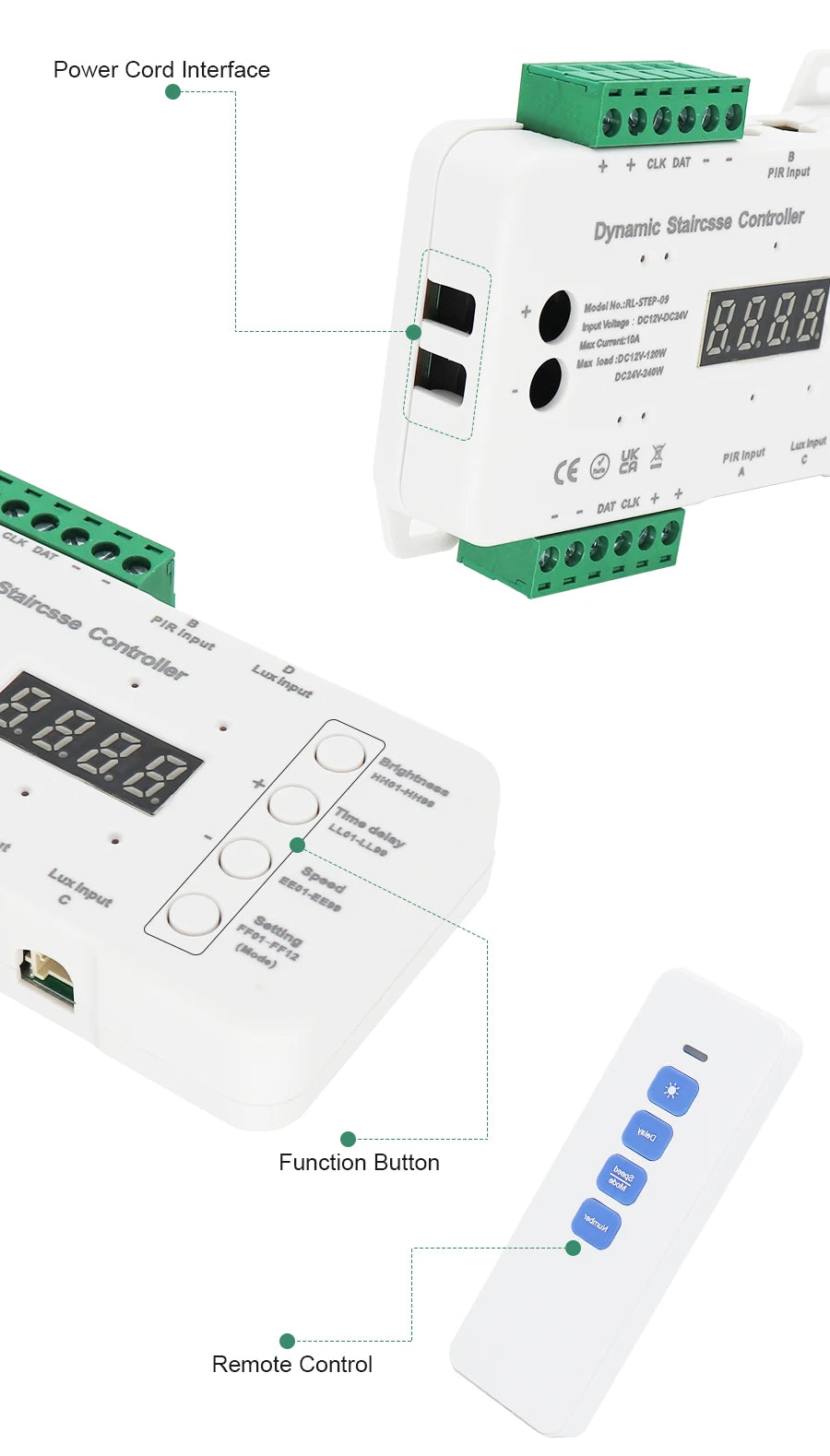

Product Name: Stair Motion Sensor Switch

Voltage: DC12V / DC24V

Max current: 10A

Power: each step<15w total<240w (DC12V /120W; DC24V/ 240W Max)

Sensors: 2 PIR Sensoron both sides

Special function: 4PIN main wire for Max 99 steps Delay Time/Speed / dimmable Lights and 12 Model

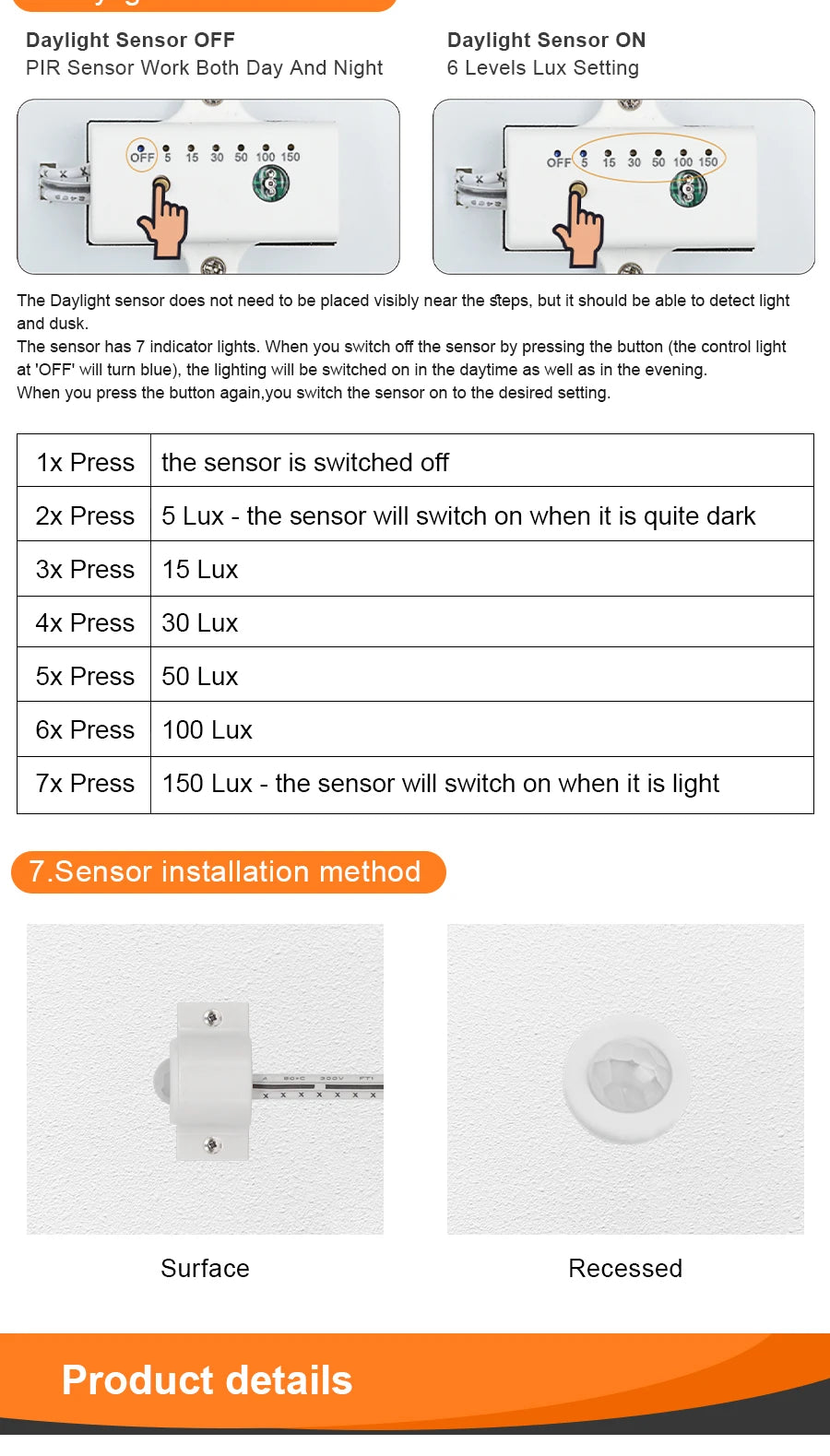

PIR Sensor: fixed mounted or recessed mounted ( Dia 15mm only )

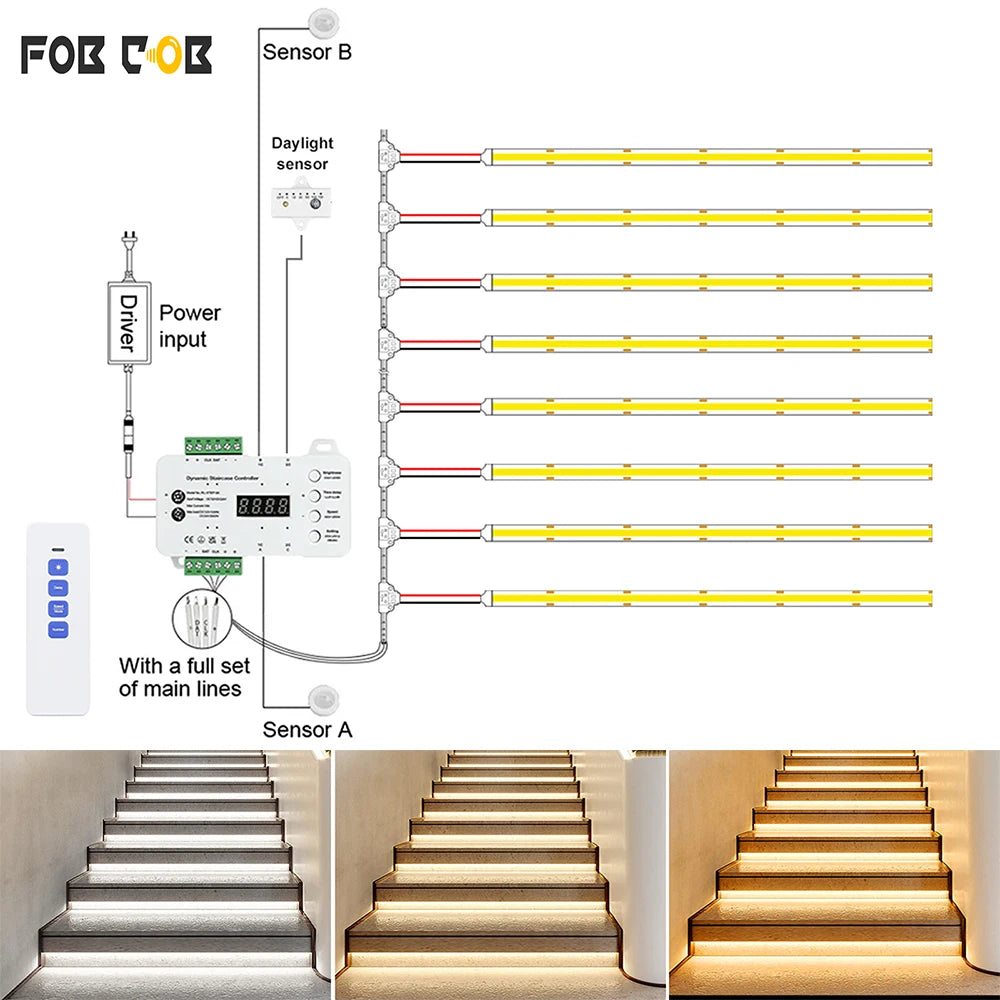

Features: there's a main line cable to conect all strips, no need complicate wiring

With light sensor: yes

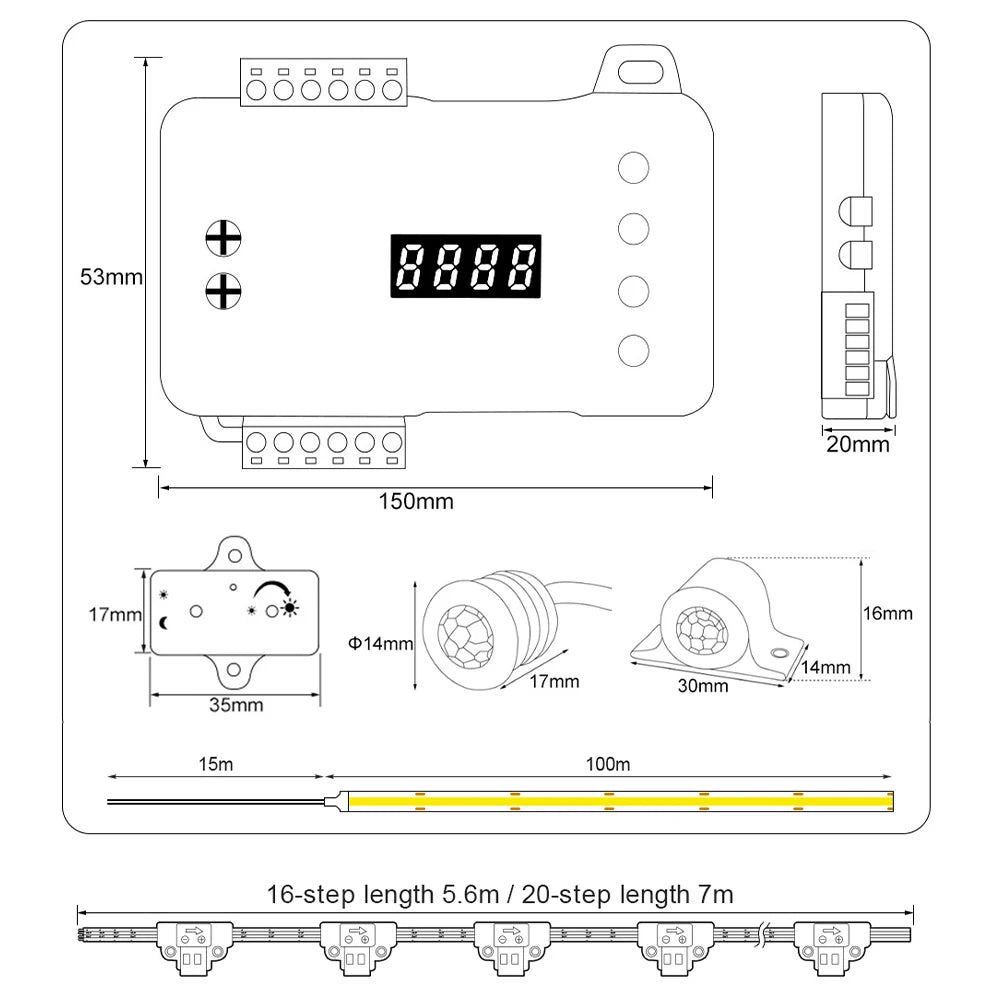

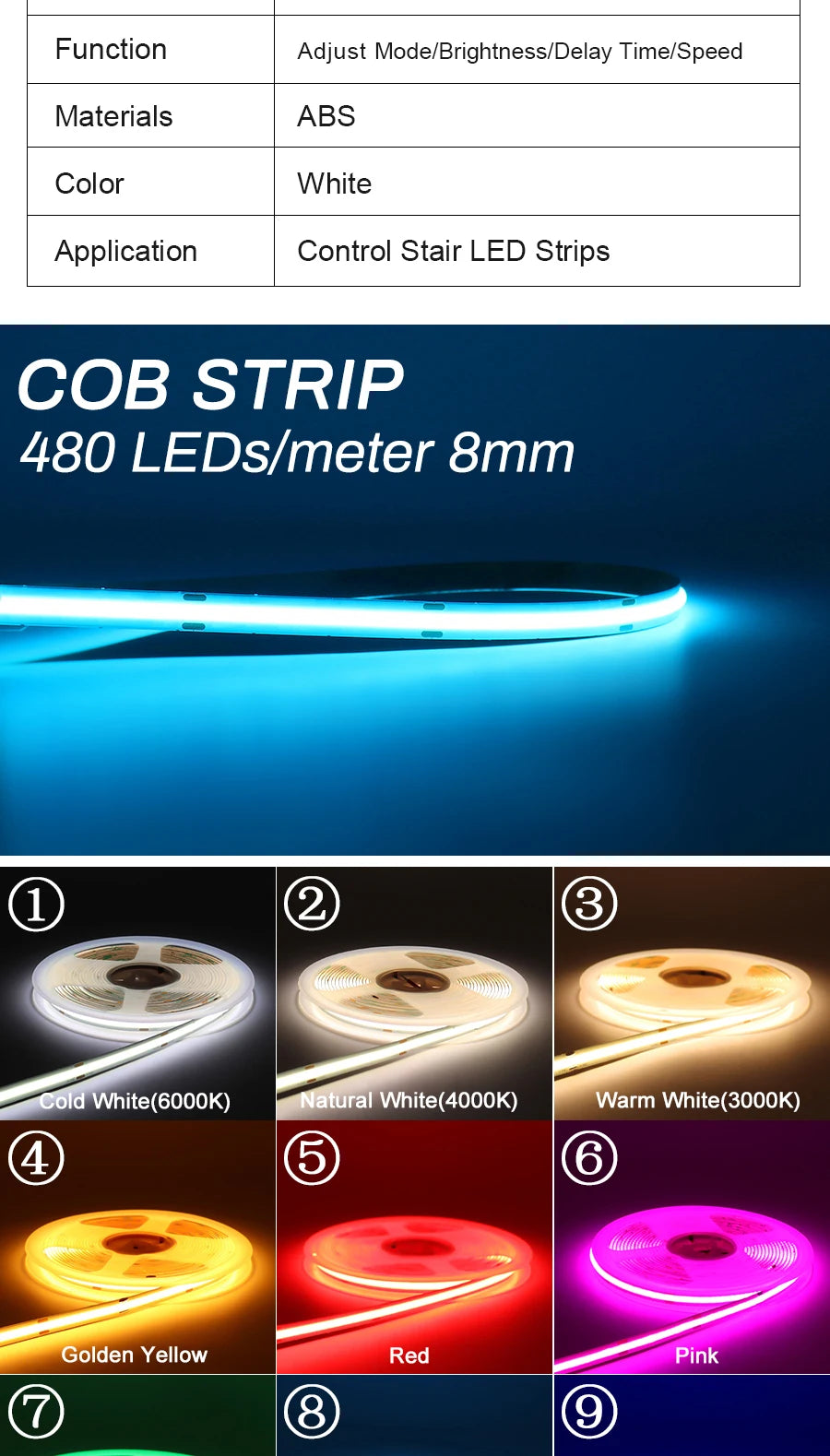

Parameters of LED strip

COB Strip width: 8mm

LED chip quantity: 480 LEDs/m

Voltage: DC 24V

Watt: 10W/m

Length: 1 meter per piece

Thickness: 2.2~2.5mm

Sticker: original 3M SLE adhesive tape

Wire length on the led strip: 15cm

Waterproof grade: IP30

Cuttable: yes (50mm/cut)

Brightness: 1000~1100LM/m

Special Features

1. No need wiring for each led strip, very easy to in stall led strips.

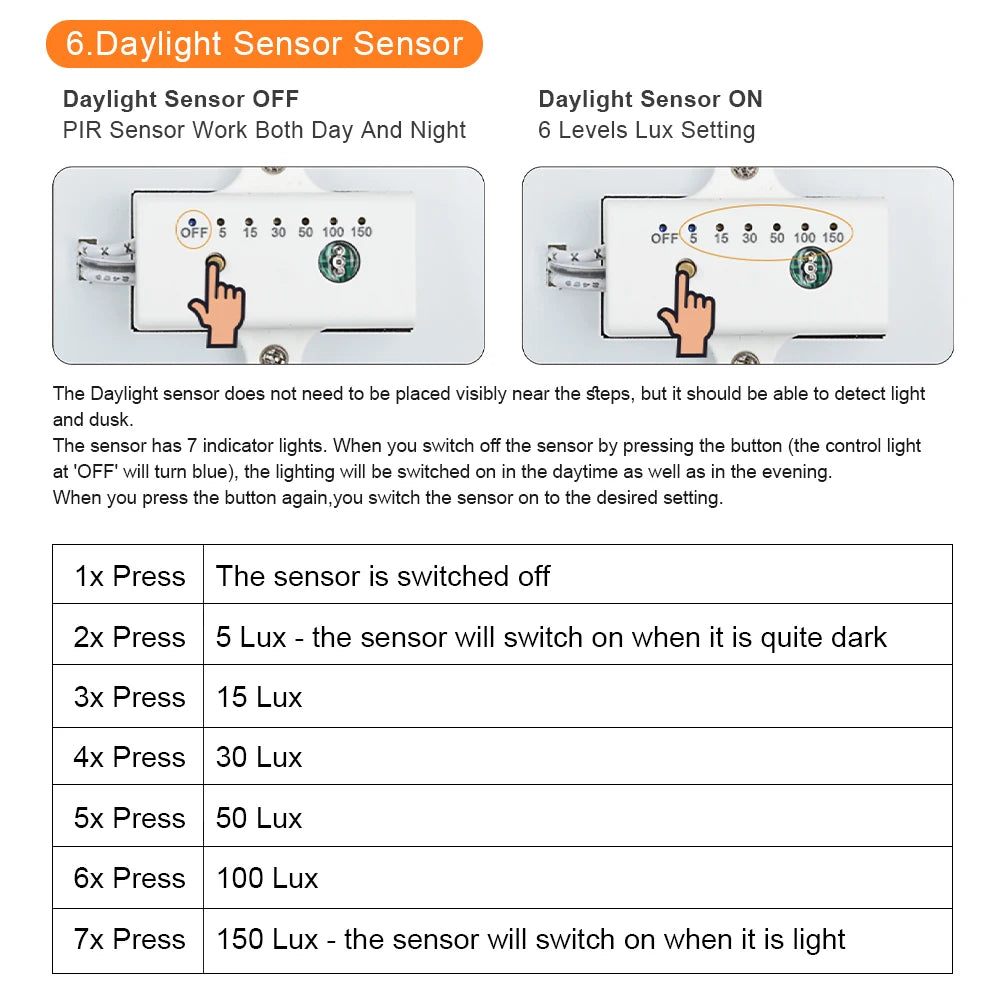

2. With daylight sensor, can make the controller don't work on daylight.

3. With remote controller to control the lighting system.

4. Can control the light step by step, can set time and speed of dynamic lighting.

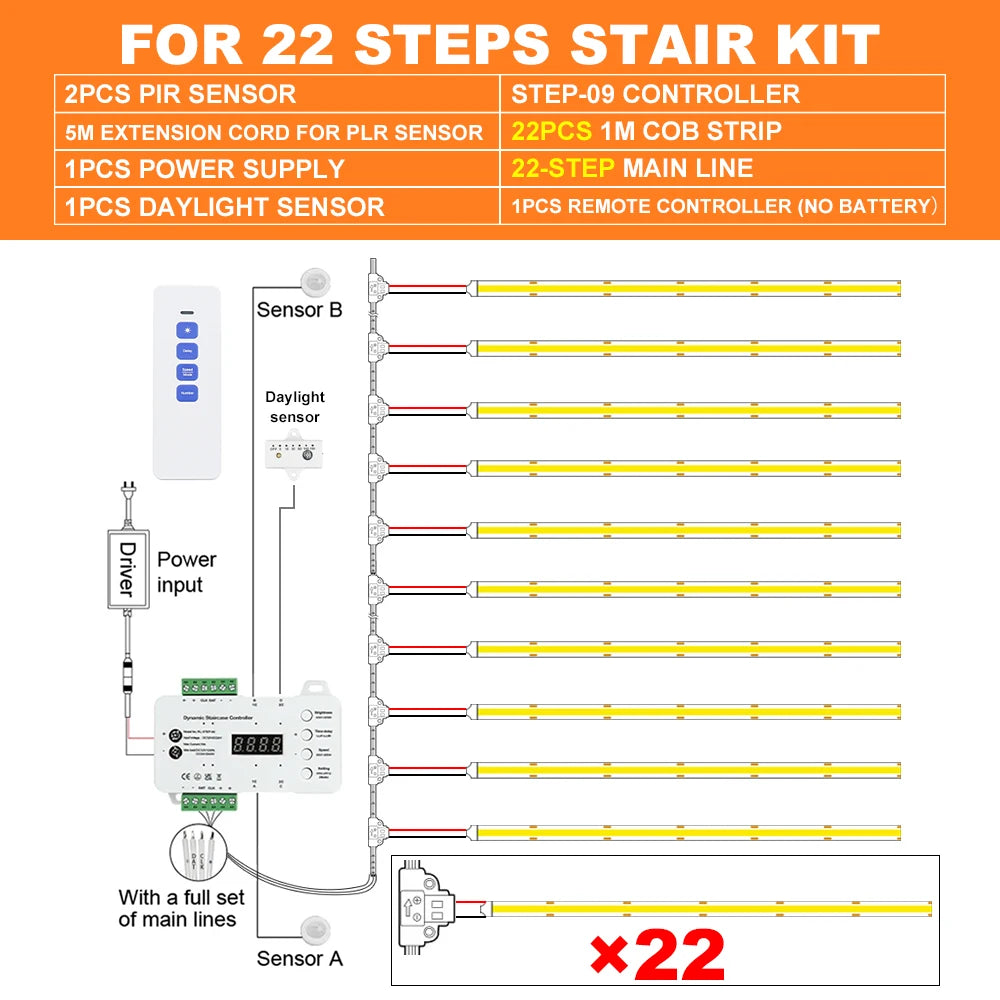

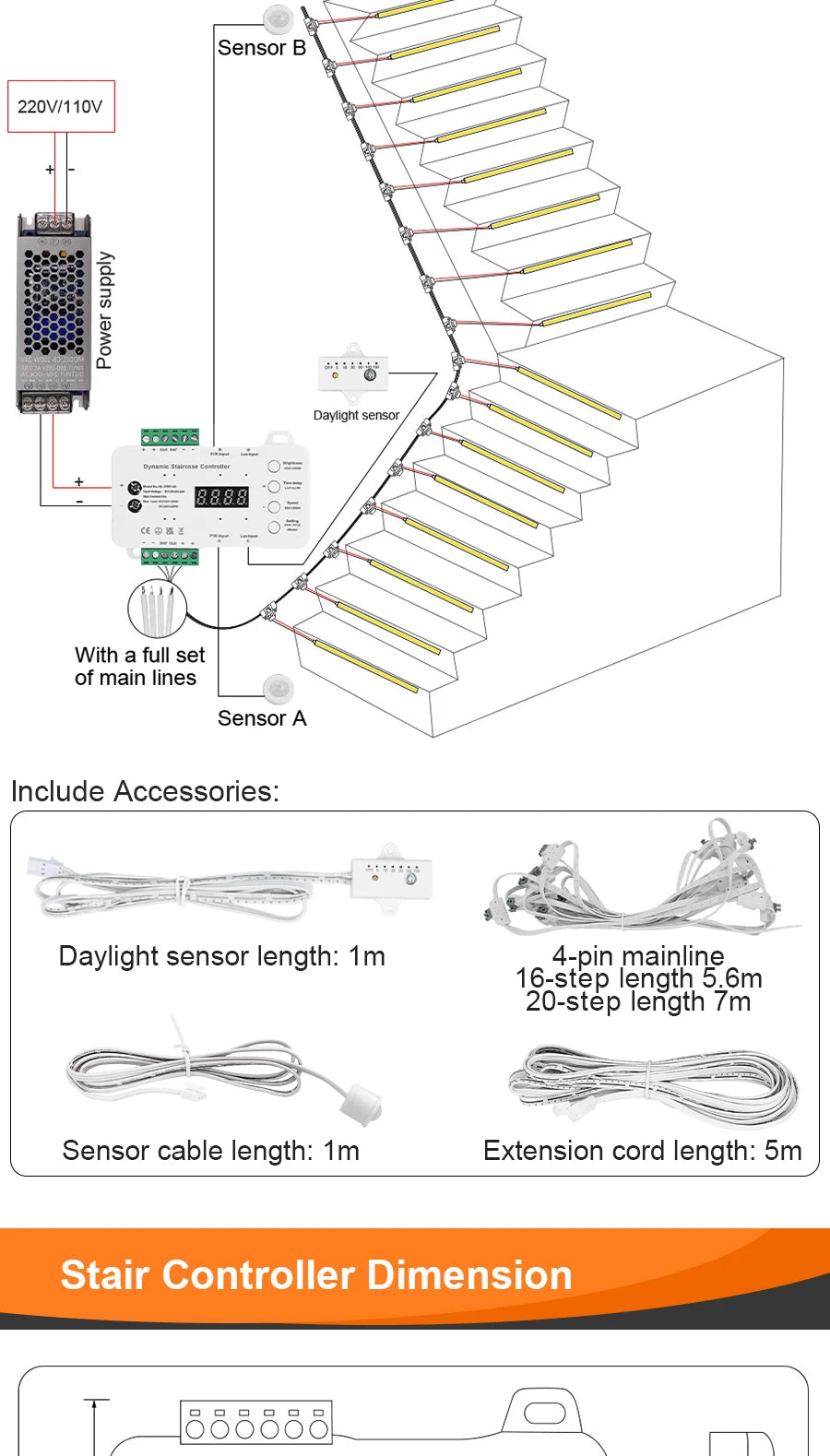

Package Included:

1x Controller

1x 16 steps main line cable (5.6 meters)

2x PIR sensor (1 meter)

1x Lighting sensor

1x Remote controller (without battery !)

1 batch of tools and accessories

(LED strip and power supply are NOT included if you choose controller only !!!)

NOTE:

This controller does not have the function of lighting on both sides of the stairs at the same time.

1- A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.

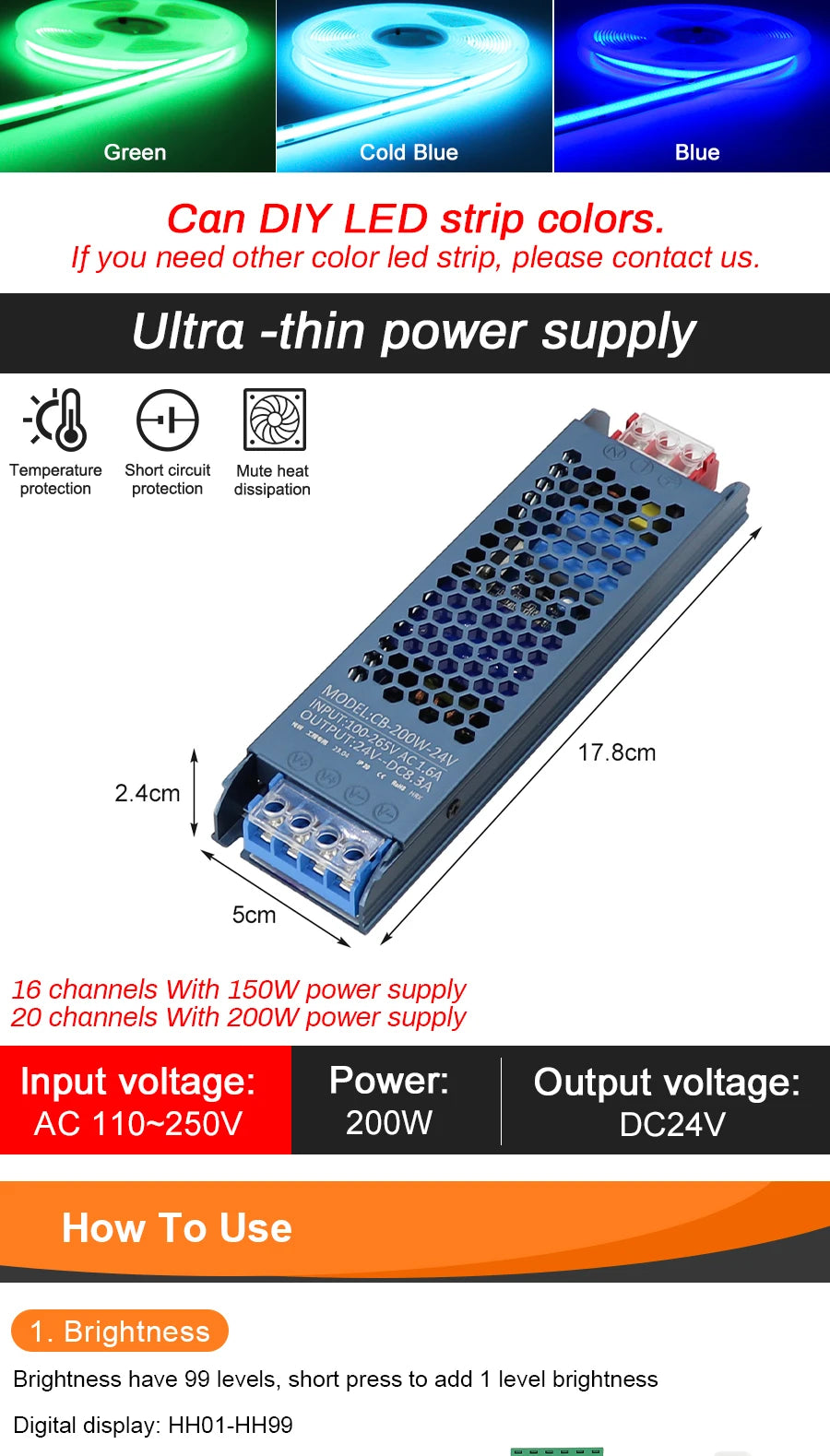

2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.

3- The product is not waterproof.

4- Don't make the +/- pole reversed, or the controller can't work.

How To Use

1. Setting

Long press“Setting" to set Step Numbers, Brightness, Time Delay, Speed, Mode

Short press to“Setting" to enter next setting

After finished all setting, long press“Setting”to save all setting

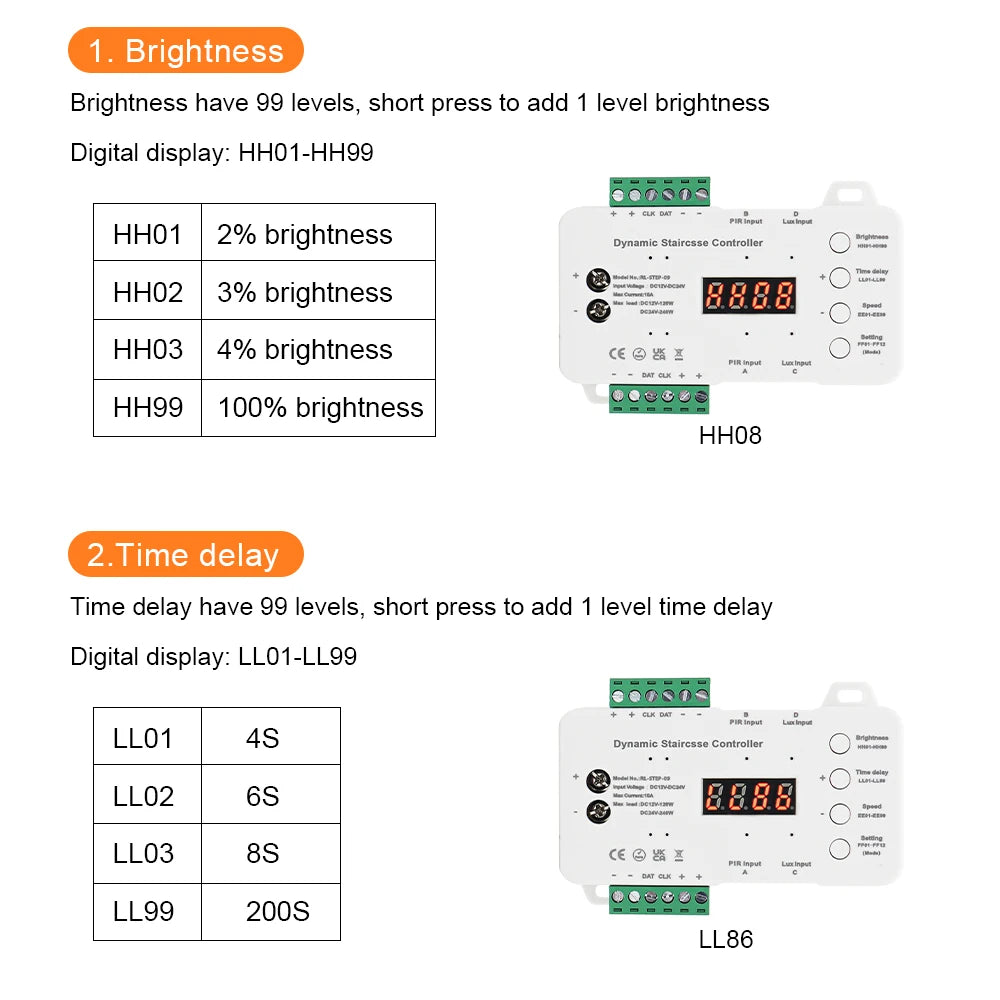

2. Brightness

Brightness have 99 levels, short press to add 1 level brightness

Digital display: HH01-HH99

HH01------------------2% brightness

HH02------------------3% brightness

HH03------------------4% brightness

HH99------------------100% brightness

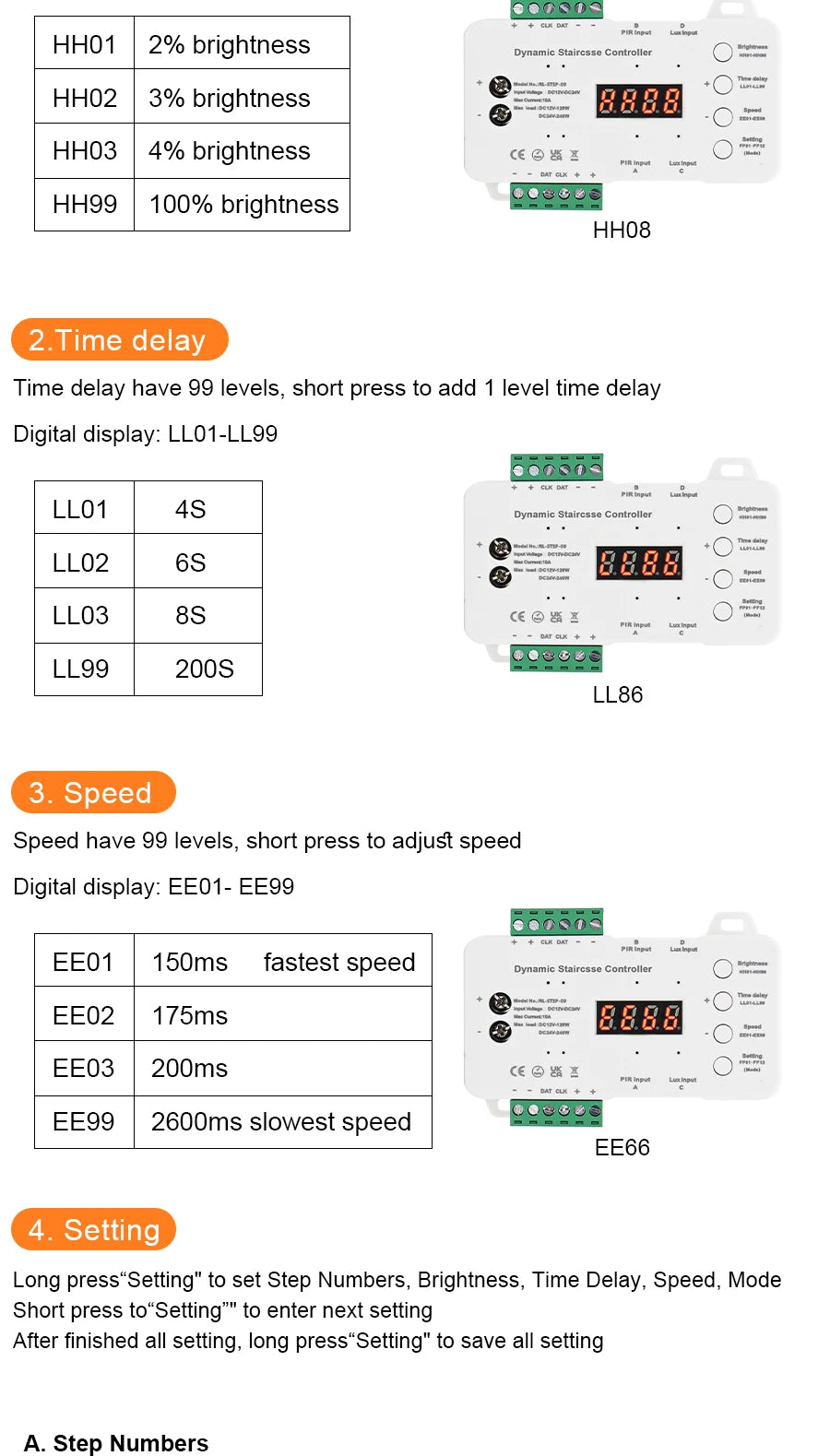

3.Time delay

Time delay have 99 levels, short press to add 1 level time delay

Digital display: LL01-LL99

LL01------------------4S

LL02------------------6S

LLO3------------------8S

LL99------------------200S

4. Speed

Speed have 99 levels, short press to adjust speed

Digital display: EE01-EE99

EE01------------------150ms fastest speed

EE02------------------175ms

EEO3------------------200ms

EE99------------------2600ms slowest speed

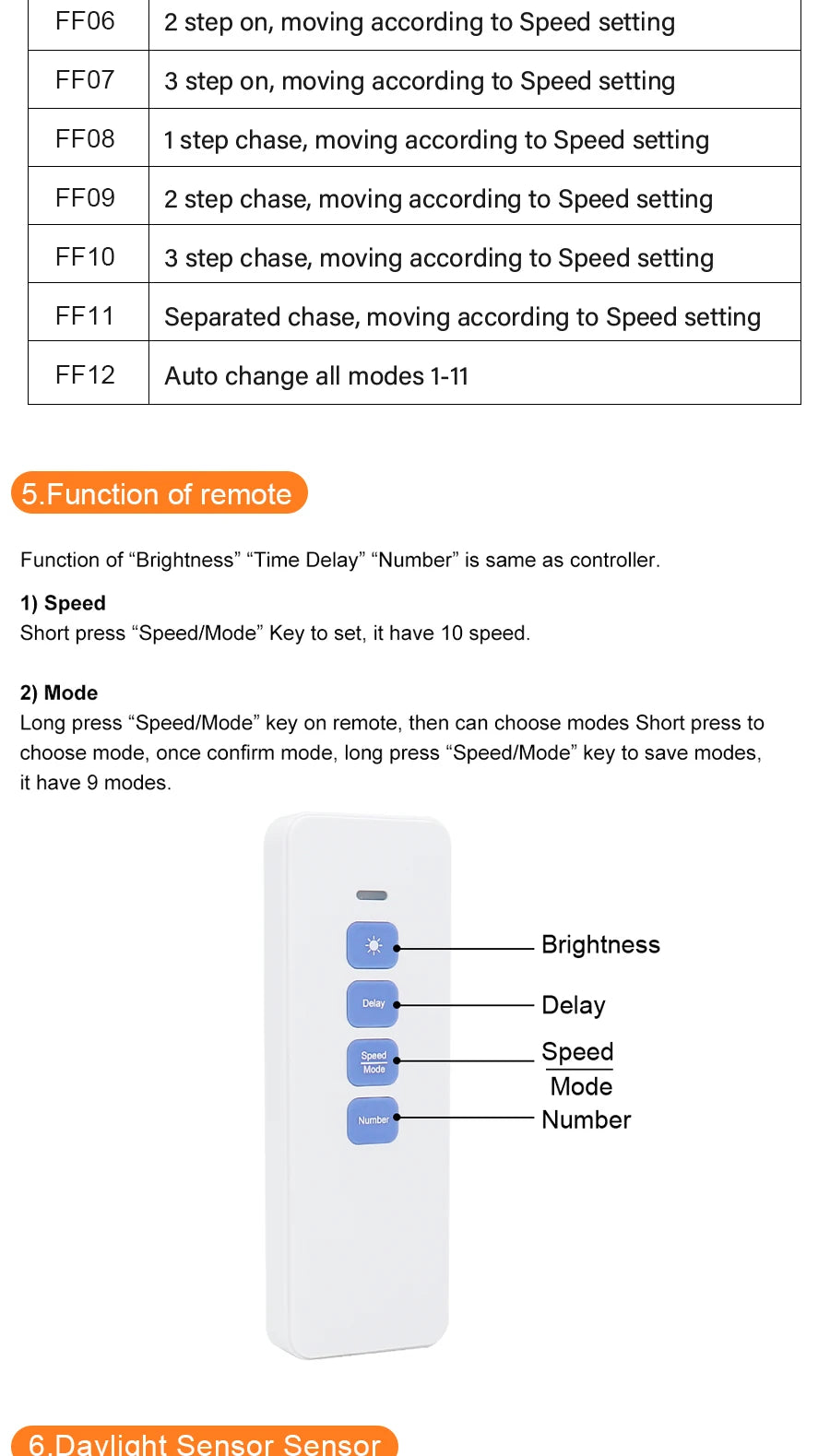

5. Set the working mode of the light strip (12 modes)

FF01------------------The first mode

FF05------------------The fifth mode

FF010------------------The tenth mode

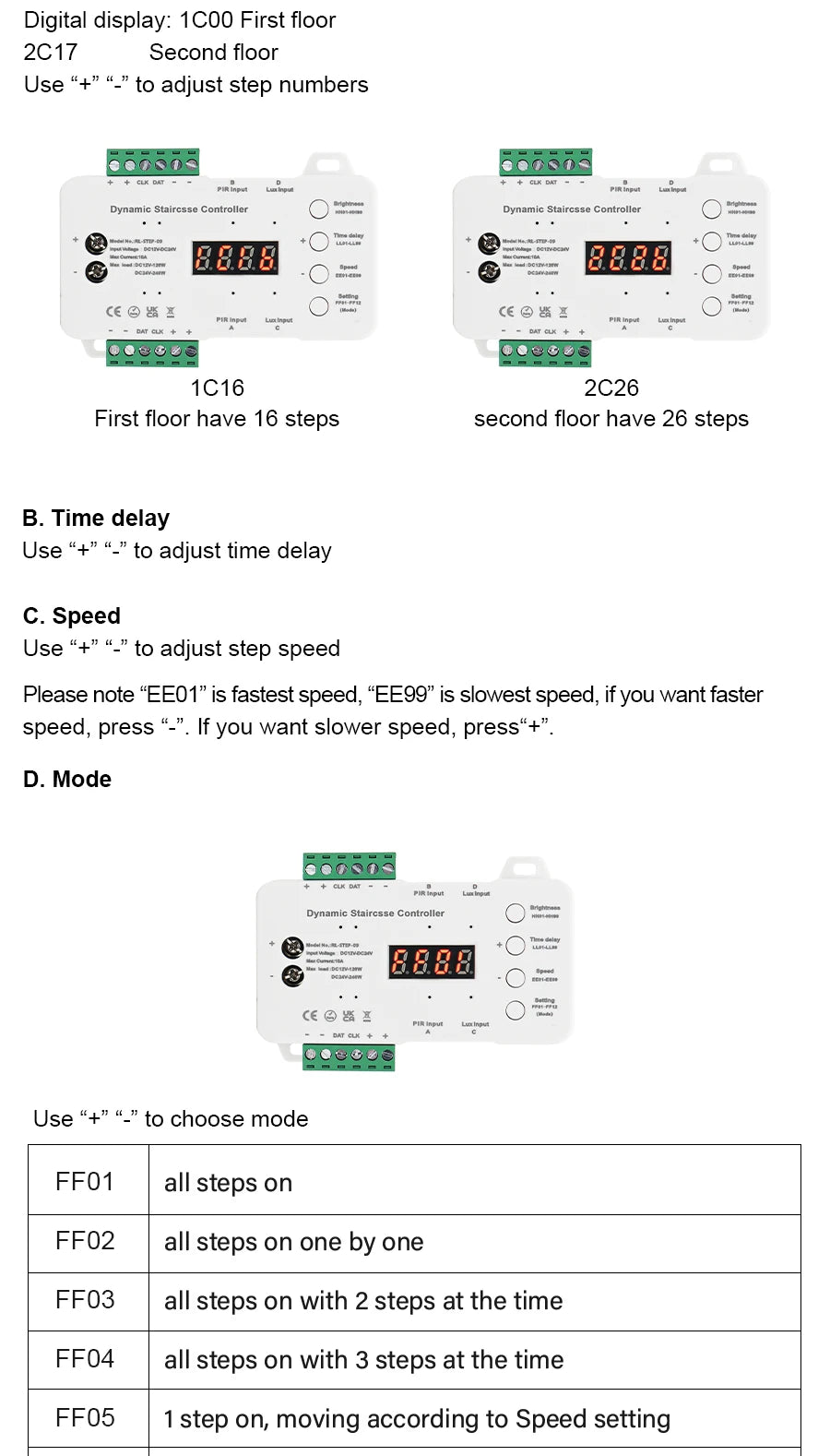

6. Set the number of stairs

1C01 ------------------ 1st Floor, 1st floor stairs

1C05 ------------------ 1st Floor 5 Stairs

1C10 ------------------ 1st Floor 10 Stairs

2C01 ------------------ 2nd Floor, 1 Staircase

2C05 ------------------ 2nd Floor 5 Stairs

2C10 ------------------ 2nd floor 10 stairs
